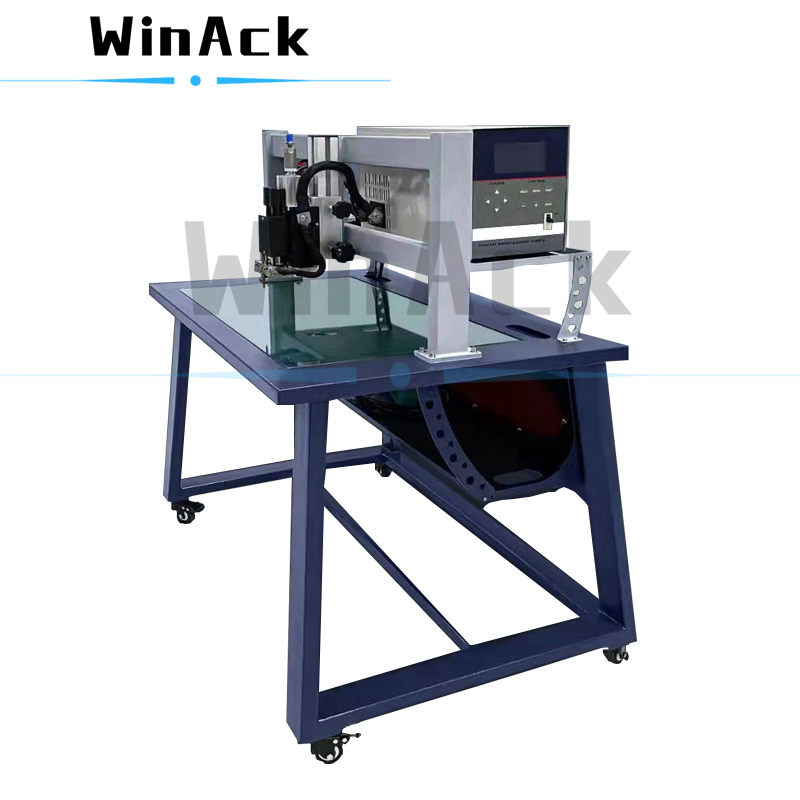

The professional spot welder for lithium-ion batteries is used for the spot welding of lithium-ion battery packs, such as the assembly of 18650, 21700, 26650, 26700, 32650, 32700 battery packs.
Model:
WA-SW-M80ZBattery type:
Cylindrical cellBusbar material:
Pure nickel strip or Nickel-plated steel stripBusbar thickness:
0.1~0.3mm (Customizable)Spot welder type:
Manual typeWelding head:
Pneumatic driveWarranty:
One year warranty with lifetime supportProduct Detail
Product overview:
The spot welder for lithium-ion batteries is equipped with an inverter DC welding power source and has a welding power switch function. It can switch the welding current required by the positive and negative electrodes when welding cylindrical battery packs, which can effectively avoid the big difference in the effect of welding the positive and negative electrodes with the same welding current.
Scope of application:
The spot welder for lithium-ion batteries is suitable for the spot welding of cylindrical battery packs.
It is usually used for spot welding of pure nickel sheets and nickel-plated steel sheets with a thickness of 0.1~0.3mm.
Features:
1) A total of 32 sets of welding parameters can be stored, allowing more flexible selection and control during welding, which can realize fast switching.
2) Preheating current, welding current and tempering current can be set, which effectively solves the problem of splashing during welding and quenching of workpiece after welding. The three discharge pulses can be used alone or in any combination.
3) With current slow rise and slow fall function: use the slow rise and slow fall function to avoid splashing during welding.
4) It has the function of single point, continuous, seam welding.
5) Energy-saving: Three-phase power input, rectified and inverted intermediate frequency 1000Hz output, high working frequency, low transformer loss, and obvious energy-saving effect.
6) Fault diagnosis and automatic protection function: In the working process, if the controller detects an abnormal situation, it will automatically turn off the output and give a friendly reminder.
Technical specifications
Product name |
Battery Spot Welding Machine |
Product model |
WA-SW-M80Z |
Product type |
Manual type |
Effective welding stroke |
X-axis: 660mm (Customizable) |
Y-axis: 650mm (Customizable) |
|
Thickness of the busbar |
Nickel-plated steel strip: 0.1~0.3mm (≥0.2mm: need convex point or need to be slotted) |
Pure nickel strip: 0.1~0.3mm (≥0.2mm: need convex point or need to be slotted) |
|
Welding speed |
0.5~0.8s/spot |
Main control unit of the controller |
DSP chip |
Output voltage |
Single-phase PWM output 500V |
Maximum short-circuit output current |
8000A |
Maximum output power of transformer |
15KVA |
Adjustable range of welding time |
Range: 1.0ms-99.0ms Accuracy: 0.1ms |
Cooling mode |
Forced air cooling |
Number of welding pulses |
3 |
Welding needles |
1.8mm or 3mm or 6mm |
Adjustable range of welding needles spacing |
0~20mm |
Power supply |
Three-phase AC380V±10% / 50/60Hz (Customizable) |
Size(W*D*H) |
About 830*725*1250mm |
Weight |
About 120kg |
