The automatic prismatic cell sorting machine can automatically test the open circuit voltage and internal resistance, and sort the prismatic cells according to the set battery OCV/IR channel ranges.
Model:
WA-AS-M10SIBattery type:
Prismatic cellBattery feeding method:
Manual feedingTesting and grading items:
OCV/IRWarranty:
One year warranty with lifetime supportProduct Detail
Automatic Prismatic Cell Sorting Machine
Battery Open Circuit Voltage and Internal Resistance Tester
Product overview:
This prismatic cell sorting machine is a professional li ion cell sorting machine. The open circuit voltage and internal resistance of the prismatic cells are tested through the equipped high-precision battery OCV/IR tester, and the prismatic cells are automatically grouped into corresponding pre-matching channels according to the grading range set on the PC operating software.
First, manually place the battery cells on the prismatic cell feeding belt. Second, the prismatic cell sorting machine will automatically transfer the prismatic cells to the battery OCV/IR test station for battery voltage and internal resistance testing. Third, after the OCV/IR test is completed, the prismatic cells are automatically transferred to the battery reader station for battery barcode/QR code reading. The operating software of the prismatic cell sorting machine will automatically bind the OCV/IR test data and the battery code in one-to-one correspondence, and sort the prismatic cells into the corresponding receiving channel according to the preset OCV/IR range of each channel. Finally, the prismatic cells are manually taken out from the receiving channels and placed into the corresponding containers.
Scope of application:
The prismatic cell sorting machine is suitable for automatic testing and sorting of voltage and internal resistance of prismatic cells.
The number of sorting channels and applicable battery size range can be customized according to requirements.
Features:
1) Wide range of compatibility
The test probe module of the prismatic cell sorting machine is adjustable. By adjusting the height and spacing of the test probes, different types of prismatic cells can be tested.
2) Simple operation and easy use
The prismatic cell sorting machine is equipped with an industrial PC, monitor and professional PC operating software. The machine operation is easy to learn and use, making prismatic cell grouping and pre-matching simple and efficient.
3) High test accuracy
The prismatic cell sorting machine is equipped with a high-precision battery OCV/IR tester with high test accuracy, the HIOKI BT3561A is trustworthy.
4) Simple structure and easy maintenance
The prismatic cell sorting machine is modularly designed, and the entire mechanical structure layout is simple and clear, which makes operation and maintenance very simple.
5) Four-wire measurement
The battery OCV/IR test is a four-wire measurement with high test accuracy.
6) Test data is traceable
The equipped battery code reader can bind the test data with prismatic cells one by one, and the test data is traceable. Test data is automatically saved to the database and can be viewed and exported.
Technical Specifications of Automatic Prismatic Cell Sorting Machine
Product name |
Prismatic Cell Sorting Machine |
Product model |
WA-AS-M10SI |
Number of sorting channels |
10 Channels (9 OK Channels + 1 NG Channel) |
Sorting efficiency |
10~12PPM |
Applicable Battery: prismatic cells (Customizable) |
Length: 60~260mm Thickness: 20~80mm Height: 100~220mm Such as: 50Ah/72Ah/100Ah/280Ah, etc. |
Battery cells loading method |
Manual feeding to the feeding area |
Battery OCV/IR tester |
Hioki BT3561A |
Battery cell testing and grading items |
OCV/IR (Open circuit voltage/ Internal resistance) |
Measurement of Internal resistance (IR) |
Test range: 0~60mΩ Test accuracy: ±0.5%rdg Test resolution: 0.1mΩ |
Measurement of Open circuit voltage (OCV) |
Test range: 0~20V Test accuracy: ±0.015%rdg Test resolution: 0.1mV |
Operation and control module |
Industrial PC and Monitor |
Machine failure rate |
≤0.1% |
Possibility of damaging the cells |
≤0.01% |
Scanner |
Keyence SR-X100W |
Compatible with barcodes and QR codes |
|
AC input power |
Single-phase 220VAC±10% / 50Hz (Customizable) |
Power: 1200W |
|
Compressed air pressure |
0.5~0.8MPa |
Size(W*D*H) |
2485*1900*1871mm |
Weight |
About 500kg |

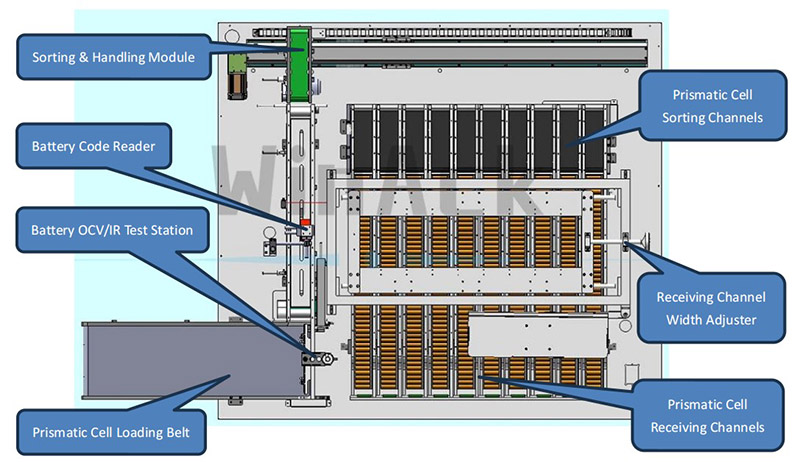

Figure 1. Mechanical Layout Diagram of Prismatic Cell Sorting Machine
* Reference picture (Picture just as reference, please in kind prevail)

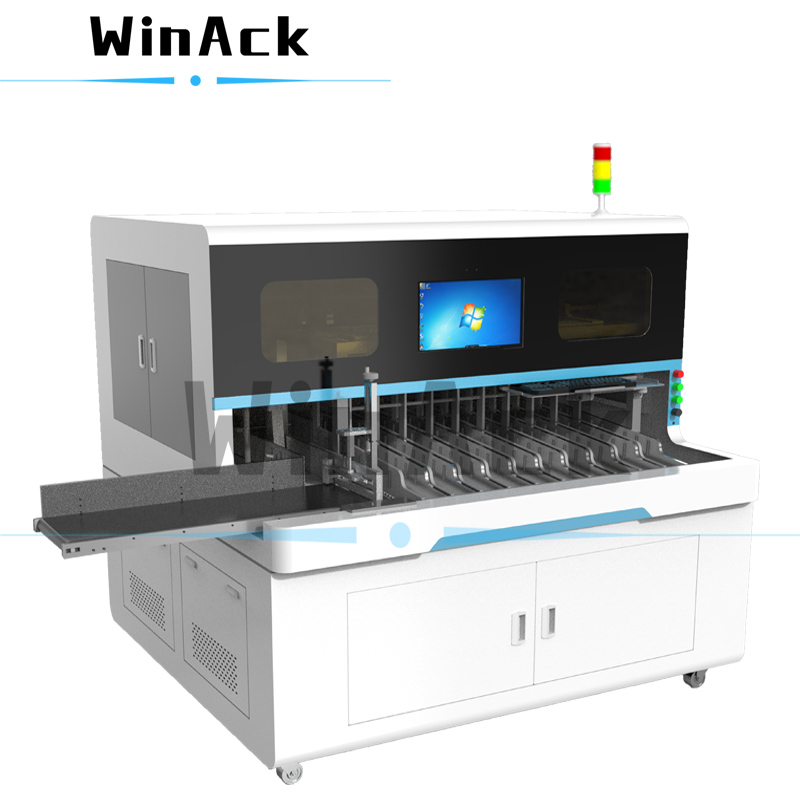

Figure 2. Prismatic Cell Sorting Machine
* Reference picture (Picture just as reference, please in kind prevail)
