Multiple high precision battery test equipment can form an isolated battery balancing machine for battery pack repair and maintenance. Multiple cells can be charged and discharged simultaneously to balance the cells without disconnecting the cell-to-cell connector.
Model:
WA-BTS-DB5V60A1CH300WTest channels:
1CH/Cabinet (Customizable)Voltage range/CH:
5V~1.5V (Customizable)Voltage accuracy:
±0.05% FSRCurrent range/CH:
120mA～60A (Customizable)Current accuracy:
±0.05% FSRProduct Detail
Battery Balancing Machine
High Precision Battery Test Equipment
Product overview:
The battery balancing machine is a high precision battery test equipment used to solve the voltage difference of different cells in the same battery pack. By charging and discharging all battery cells in the same string, the voltage difference of each battery cell tends to zero. This achieves battery cell balance and extends the service life of the battery pack.
Multiple battery balancing machines charge or discharge single battery cells at the same time without disconnecting the cell-to-cell connector. It can balance batteries in series. The cut-off condition can be set to voltage, current or capacity.
Scope of application:
The battery balancing machine is a high precision battery test equipment, suitable for the repair and maintenance of ebike batteries, electric motorcycle batteries, car batteries, EV batteries, ESS batteries, drone batteries, electric forklift batteries and other batteries.
Features:
1. Battery balancing machines in different cabinets are isolated from each other, allowing simultaneous charge and discharge of multiple cells in the same battery pack for battery cell balancing to repair and maintenance the battery pack.
2. Each battery balancing machine is independently controlled and different test processes can be performed simultaneously.
3. This high precision battery test equipment uses four-wire measurement sampling to ensure high measurement accuracy.
4. This high precision battery test equipment adopts a modular design and is easy to debug and maintain.
5. Battery balancing machines from multiple cabinets can be used in parallel via a middle machine connection, which increases the current range.
6. The high precision battery test equipment has battery anti-reverse polarity protection.
7. Each interface of the battery balancing machine software is clearly displayed and the operation is simple and easy to use.
8. The battery balancing machine has powerful software protection functions, such as over-voltage protection, under-voltage protection, over- current protection, over-charge capacity protection, and over-discharge capacity protection, etc.
Technical Specifications of High Precision Battery Test Equipment
|
Product name |
Battery Balancing Machine |
|
|
Product model |
WA-BTS-DB5V60A1CH300W |
|
|
Product type |
Dissipative type |
|
|
AC input voltage (Customizable) |
Single-phase 220VAC±10% / 50Hz |
|
|
Power |
350W |
|
|
Input impedance |
≥1MΩ |
|
|
Current response time |
≤100ms (10%FSR~90%FSR) |
|
|
Channel |
No. of channels |
1 Channel/Cabinet |
|
Cabinets in parallel |
By equipping the middle machine, multiple cabinets can be used in parallel. |
|
|
Isolation performance |
Each cabinet is isolated. Multiple cabinets can simultaneously charge and discharge multiple battery cells in the same battery pack without disconnecting the cell-to-cell connectors. In short, multiple battery balancing machines are combined into a battery cell balancer. |
|
|
Control mode |
Each cabinet is independently controlled. |
|
|
Features |
The constant-current source and constant-voltage source use a double closed-loop structure. |
|
|
Detection and sampling |
Four-wire measurement |
|
|
Voltage/CH (Customizable) |
Charge range |
DC: 10mV~5V (Device port) |
|
Discharge range |
DC: 5V~1.5V (Device port) |
|
|
Accuracy |
±0.05% FSR Note: Ambient temperature:15~35℃. |
|
|
Current/CH (Customizable) |
Charge range |
DC: 120mA～60A |
|
Discharge range |
DC: 120mA～60A |
|
|
Accuracy |
±0.05% FSR Note: Ambient temperature: 15~35℃. |
|
|
Power/CH |
Maximum output |
300W |
|
Stability |
±0.1% FSR |
|
|
Data recording |
Recording frequency |
1Hz Note: 10Hz is customizable. |
|
Recording conditions |
∆T, ∆I, ∆V |
|
|
Min. time interval |
1s Note: If 10Hz, then 100ms. |
|
|
Min. voltage interval |
1mV or 0.01%FSR |
|
|
Min. current interval |
1mA or 0.01%FSR |
|
|
Charge |
Mode |
1) CCC: Constant current charging 2) CVC: Constant voltage charging 3) CC-CVC: Constant current and constant voltage charging 4) CPC: Constant power charging |
|
End condition |
Voltage, Current, Time, Capacity, -△V |
|
|
Discharge |
Mode |
1) CCD: Constant current discharge 2) CPD: Constant power discharge 3) CRD: Constant resistance discharge |
|
End condition |
Voltage, Current, Time, Capacity, -△V |
|
|
Pulse test |
Charging mode |
1) Constant current charging 2) Constant power charging |
|
Discharge mode |
1) Constant current discharge 2) Constant power discharge |
|
|
Min pulse width |
5s |
|
|
End condition |
Voltage, Relative Time |
|
|
Test cycles |
Number of cycles |
1~65535 |
|
Max test steps per cycle |
399 |
|
|
Nested Loop |
Nested loop function，Max support 5 layers |
|
|
DCIR test |
Support the calculation of DCIR in the custom fetch point. |
|
|
Protection function |
1) Battery anti-reverse connection protection; 2) Power-down data protection (When equipped with a UPS, there is 100% no data loss.); 3) Software: low voltage limit, upper voltage limit, low current limit, upper current limit, upper capacity limit, etc. |
|
|
Communication interface |
Ethernet |
|
|
Control quantity of control software |
One computer can control up to 100 battery balancing machines. Note: The battery balancing machine is connected to the battery balancing machine through an Ethernet switch or 485. |
|
|
PC operating system |
Micorsoft Windows |
|
|
Test data output |
Excel and PDF |
|
|
Cooling method |
Forced air-cooling |
|
|
Machine noise |
≤60dB |
|
|
Operating Temperature |
0℃～40℃ |
|
|
Storage Temperature |
-10℃～50℃ |
|
|
Working Environment Relative Humidity |
≤70% RH (No condensation) |
|
|
Storage Environment Relative Humidity |
≤80% RH (No condensation) |
|
|
Auxiliary temperature acquisition device |
Optional |
|
|
Temperature test chamber |
Optional |
|
|
BMS communications |
Optional |
|
|
Test Clamps (One Choice from Four) |
||
|
Figure 1. Cable Lugs for Battery Testing |
Figure 2. Large Alligator Clamps for Battery Testing |
|

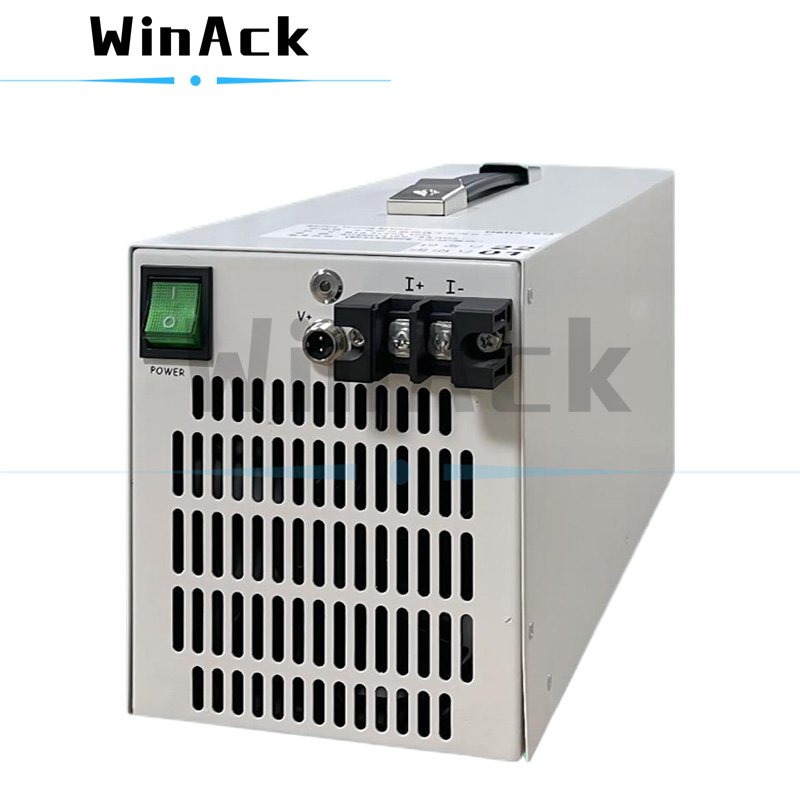

Figure 3. Battery Balancing Machine
* Reference picture (Picture just as reference, please in kind prevail)
