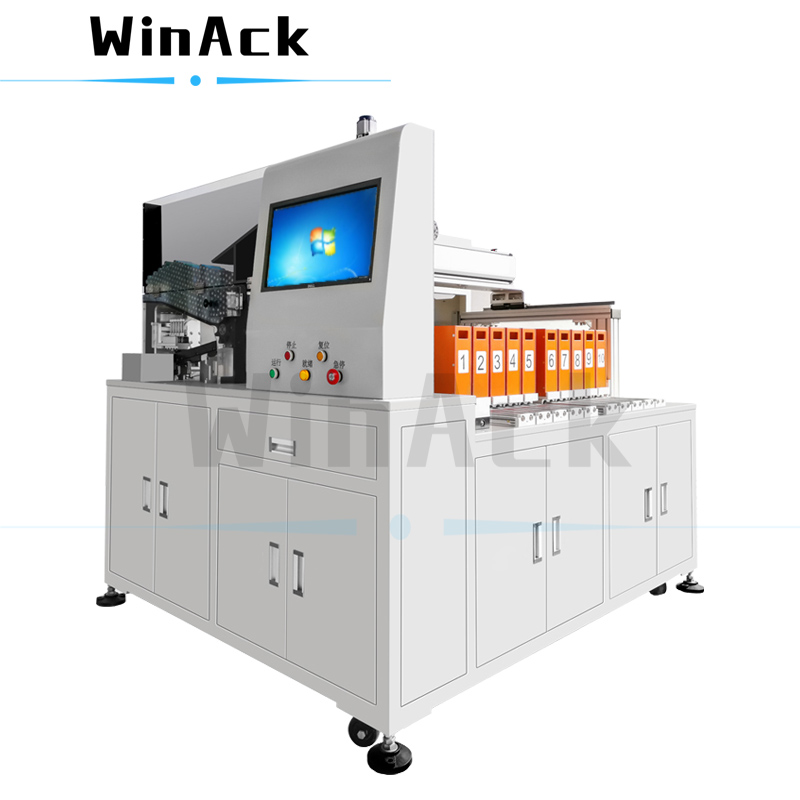

The battery cell testing and sorting machine is equipped with replaceable receiving containers, and the manipulator can automatically send the graded cells to the corresponding containers.
Model:
WA-AS-H10RBattery type:
Cylindrical cellBattery feeding method:
Hopper loading typeTesting and grading items:
OCV/IRWarranty:
One year warranty with lifetime supportProduct Detail
Product overview:
The battery cell testing and sorting machine is used for battery OCV/IR testing and grading to improve the consistency of battery cells. By doing so, the charge and discharge performance and cycle life of each battery cell will tend to be consistent, thereby avoiding the "barrel short board principle" and maximizing the cycle life of the battery pack.
The battery cell testing and sorting machine is mainly composed of a loading hopper module, an OCV/IR test module, an automatic sorting module, a receiving manipulator module, a receiving containers module.
Scope of application:
The battery cell testing and sorting machine is used for the classification of cylindrical battery cells, and performs accurate grading and automatic sorting based on the measured OCV/IR value.
The battery sorter of 18650, 21700, 26650, 26700, 32650 and 32700 and other cylindrical battery cells can be customized.
Features:
1) Replaceable receiving containers
The battery cell testing and sorting machine is equipped with replaceable receptacle containers. When the number of cells required for a battery module/battery pack is reached, the container can be replaced manually.
2) Automatic receiving manipulator
The receiving manipulator can automatically send the graded battery cells to the receiving container, saving labor.
3) Large-capacity loading hopper
The battery cell testing and sorting machine is equipped with a large-capacity loading hopper, which can hold 500 battery cells, reducing the number of feedings.
Note: The prototype battery type is 18650 cells.
4) Simple operation and easy use
The equipped Industrial PC & Monitor and professional battery sorting system software make the operation very simple and easy to use.
5) High testing and sorting efficiency
The battery cell sorting machine can test and sort about 5000 cells per hour to achieve high-speed grading.
Note: The prototype battery type is 18650 cells.
6) No short-circuit during transportation
The transportation route of the cylindrical cells in the battery sorter adopts insulating material to prevent short circuit.
7) Digital Intelligent Manufacturing
The battery sorter machine is able to connect to the in-house network, and the test data can be uploaded to the MES system.
8) Four-wire measurement
The battery test is a four-wire measurement with high test accuracy.
9) Every cell can be traced
Battery cell Barcode printer and battery cell Barcode scanner is optional to match the test data with the corresponding battery cells.
Technical specifications
|
Product name |
Cylindrical Battery Cell Sorting Machine |
|
Product model |
WA-AS-H10R |
|
Number of sorting channels |
10 Channels (9 OK Channels + 1NG Channel) |
|
Number of receiving containers |
10PCS |
|
Container capacity |
80 Cells (Customizable) |
|
Applicable type of battery cells |
Prototype battery: 21700 cells |
|
18650 or 26650 or 26700 or 32650 or 32700, etc. can be customized |
|
|
Sorting efficiency |
About 4500 Cells/Hour |
|
Battery cells loading method |
Manually load the battery cells into the battery hopper |
|
Hopper capacity: 500PCS |
|
|
Battery tester |
Hioki 3561A or HP3561 |
|
Battery cell testing and grading items |
OCV/IR |
|
Measurement of Internal resistance (IR) |
Test range: 0~60mΩ Test accuracy: ±0.5%rdg Test resolution: 0.1mΩ |
|
Measurement of Open circuit voltage (OCV) |
Test range: 0~10V Test accuracy: ±0.015%rdg Test resolution: 0.1mV |
|
Operation and control module |
Industrial PC & Monitor & PLC |
|
Optional function |
1) Battery cell Barcode printer 2) Battery cell Barcode scanner |
|
Power supply |
Single-phase AC220V±10% / 50Hz (Customizable) |
|
Power: ≤2000W |
|
|
Compressed air pressure |
0.5~0.8MPa |
|
Size(L*W*H) |
1740*1450*1960mm |
|
Weight |
＜500kg |
Equipment configuration
|
NO. |
Spare parts |
Brand |
|
1 |
Air cylinder |
AIRTAC or CHELIC or SMC or CKD or HITOP |
|
2 |
Solenoid value |
AIRTAC or CHELIC or SMC or CKD or HITOP |
|
3 |
Linear guide rail |
HIWIN |
|
4 |
PLC |
OMRON |
|
5 |
Electric relay |
OMRON or Shanghai Electric |
|
6 |
Sensor |
OMRON or SUNX or AkuSense |
|
7 |
Push button |
Guangke |
|
8 |
Stepper motor |
Leadshine or Inovance |
|
9 |
Servo motor |
Fuji Electric or Panasonic |
|
10 |
Battery tester |
Hioki 3561A or HP3561 |
*Note: Subject to the actual use, if there is any change, no further notice will be given.
