Battery Cell Testing Equipment | Cell Cycler for Battery Testing

The battery cell testing equipment is a PC-controlled cell cycler for battery testing that records voltage, current, capacity, energy and cycle number in real time, and can perform deep cycle tests. Discharging to 0V can be customized.

  • Model:

    WA-BTS-DB5V12A8CH480W
  • Test channels:

    8CH/SET (Customizable)
  • Voltage range/CH:

    5V~1.5V (Customizable)
  • Voltage accuracy:

    ±0.05% FSR
  • Current range/CH:

    24mA~12A (Customizable)
  • Current accuracy:

    ±0.05% FSR
  • Product Detail

Battery Cell Testing Equipment

Lithium-ion Battery Cell Cycler for Battery Testing


Product overview:

The cell cycler for battery testing is a professional high-precision and high-performance battery cell testing equipment. By setting the test process in the control software installed on the computer, the batteries can be charged and discharged for testing battery capacity, energy, voltage, current and cycle life, etc.

In addition, the cell cycler for battery testing also comes with data processing software that can output test data and curve graphs.


Scope of application:

The cell cycler for battery testing is one of the necessary battery cell testing equipment for battery R&D, battery manufacturing and battery quality testing. It is suitable for battery formation process, battery capacity grading process, battery charge and discharge performance test, battery aging test, battery cycle life test, etc.


WinAck DB-series Battery Cell Cycler for Battery Testing

(Voltage range, current range, test accuracy and recording frequency, etc., can all be customized.)

Product Model

DC Voltage Range / CH

DC Current Range / CH

Channels/Cabinet

WA-BTS-DB5V1mA8CH40mW

5V

±1mA

8CH

WA-BTS-DB5V10mA8CH400mW

5V

±10mA

8CH

WA-BTS-DB5V20mA8CH800mW

5V

±20mA

8CH

WA-BTS-DB5V50mA8CH2W

5V

±50mA

8CH

WA-BTS-DB5V100mA8CH4W

5V

±100mA

8CH

WA-BTS-DB5V200mA8CH8W

5V

±200mA

8CH

WA-BTS-DB5V300mA8CH12W

5V

±300mA

8CH

WA-BTS-DB5V500mA8CH20W

5V

±500mA

8CH

WA-BTS-DB5V1A8CH40W

5V

±1A

8CH

WA-BTS-DB5V2A8CH80W

5V

±2A

8CH

WA-BTS-DB5V3A8CH120W

5V

±3A

8CH

WA-BTS-DB5V4A8CH160W

5V

±4A

8CH

WA-BTS-DB5V6A8CH240W

5V

±6A

8CH

WA-BTS-DB5V10A8CH400W

5V

±10A

8CH

WA-BTS-DB5V12A8CH480W

5V

±12A

8CH

WA-BTS-DB5V15A8CH600W

5V

±15A

8CH

WA-BTS-DB5V20A8CH800W

5V

±20A

8CH

WA-BTS-DB5V25A8CH1000W

5V

±25A

8CH

WA-BTS-DB5V30A8CH1200W

5V

±30A

8CH

WA-BTS-DB5V50A8CH2000W

5V

±50A

8CH

WA-BTS-DB5V60A1CH300W

5V

±60A

1CH

WA-BTS-DB5V60A8CH2400W

5V

±60A

8CH

WA-BTS-DB5V100A4CH2000W

5V

±100A

4CH

WA-BTS-DB5V120A4CH2400W

5V

±120A

4CH

WA-BTS-DB5V200A2CH2000W

5V

±200A

2CH

WA-BTS-DB5V300A1CH1500W

5V

±300A

1CH

WA-BTS-DB5V500A1CH2500W

5V

±500A

1CH

WA-BTS-DB6V2A8CH96W

6V

±2A

8CH

WA-BTS-DB6V3A8CH144W

6V

±3A

8CH

WA-BTS-DB6V5A8CH240W

6V

±5A

8CH

WA-BTS-DB10V3A8CH240W

10V

±3A

8CH

WA-BTS-DB10V5A8CH400W

10V

±5A

8CH

WA-BTS-DB10V6A8CH480W

10V

±6A

8CH

WA-BTS-DB10V10A8CH800W

10V

±10A

8CH

WA-BTS-DB10V15A8CH1200W

10V

±15A

8CH

WA-BTS-DB10V20A8CH1600W

10V

±20A

8CH

WA-BTS-DB10V30A1CH300W

10V

±30A

1CH

WA-BTS-DB10V30A8CH2400W

10V

±30A

8CH

WA-BTS-DB10V60A4CH2400W

10V

±60A

4CH

WA-BTS-DB10V100A2CH2000W

10V

±100A

2CH

WA-BTS-DB10V120A2CH2400W

10V

±120A

2CH

Kindly reminder:

a) If there are any adjustments or modifications, you'd like to make to the voltage range, current range, max. output power, test accuracy and recording frequency, etc.; or if you have any further questions or concerns, please don't hesitate to contact us. We are more than happy to assist you in any way we can. We value your feedback, and our team is committed to providing the best solutions and service to you.

b) The above are some of our product models, for more battery test systems with other voltage ranges, current ranges and output power, please contact us for more details.

c) The above models and parameters are for reference only, please refer to the latest technical specifications provided by us.


Features:

1. Modular design, easy to debug and maintain.

2. Four-wire measurement sampling ensures high measurement accuracy.

3. Each channel of the battery cell testing equipment is independently controlled and different test processes can be performed simultaneously.

4. Each interface of the cell cycler for battery testing software is clearly displayed and the operation is simple and easy to use.

5. The battery cell testing equipment has battery anti-reverse polarity protection.

6. The cell cycler for battery testing has powerful software protection functions, such as over-voltage protection, under-voltage protection, over- current protection, over-charge capacity protection, and over-discharge capacity protection, etc.

7. Optional: The deep discharge battery cell cycler for battery testing can be customized and can discharge as low as 0V.


Technical Specifications of Battery Cell Testing Equipment

Product name

Cell Cycler for Battery Testing

Product model

WA-BTS-DB5V12A8CH480W

Product type

Dissipative type cell cycler

AC input voltage

Single-phase 220VAC±10% / 50Hz (Customizable)

Power

500W

Input impedance

≥1MΩ

Current response time

10ms (10%FSR~90%FSR)

Channel

No. of channels

8 Channels/Cabinet

Control mode

Each channel is independently controlled.

Features

The constant-current source and constant-voltage source use a double closed-loop structure.

Detection and sampling

Four-wire measurement

Isolation performance

Channels are common-ground and different channels cannot be connected.

Note: Isolation type is customizable.

Ports

The charge and discharge ports of the battery are the same.

Note: Different ports can be customized.

Voltage/CH

Charge range

DC: 10mV~5V (Customizable)

Discharge range

DC: 5V~1.5V (Customizable)

Accuracy

±0.05% FSR (Customizable)

Note: Ambient temperature:15~35.

Current/CH

Charge range

DC: 24mA12A (Customizable)

Discharge range

DC: 24mA12A (Customizable)

Accuracy

±0.05% FSR (Customizable)

Note: Ambient temperature: 15~35.

Power/CH

Maximum output

60W

Stability

±0.1% FSR

Data recording

Recording frequency

1Hz

Note: 10Hz is customizable.

Recording conditions

∆T, ∆I, ∆V

Min. time interval

1s

Note: If 10Hz, then 100ms.

Min. voltage interval

1mV or 0.01%FSR

Min. current interval

1mA or 0.01%FSR

Charge

Mode

1) Constant current charging

2) Constant voltage charging

3) Constant current and constant voltage charging

4) Constant power charging

End condition

Voltage, Current, Time, Capacity, -V

Discharge

Mode

1) Constant current discharge

2) Constant power discharge

3) Constant resistance discharge

End condition

Voltage, Current, Time, Capacity, -V

Pulse test

Charging mode

1) Constant current charging

2) Constant power charging

Discharge mode

1) Constant current discharge

2) Constant power discharge

Min pulse width

5s

End condition

Voltage, Relative Time

Test cycles

Number of cycles

1~65535

Max test steps per cycle

399

Nested Loop

Nested loop functionMax support 5 layers

DCIR test

Support the calculation of DCIR in the custom fetch point.

Protection function

1) Battery anti-reverse connection protection;

2) Power-down data protection (When equipped with a UPS, there is 100% no data loss.);

3) Software: low voltage limit, upper voltage limit, low current limit, upper current limit, upper capacity limit, etc.

Communication interface

Ethernet

Control quantity of control software

One computer can control up to 100 battery cell testing equipment.

Note: The cell cycler is connected to the cell cycler through a Ethernet switch or 485.

PC operating system

Micorsoft Windows

Test data output

Excel and PDF

Cooling method

Forced air-cooling

Machine noise

≤60dB

Operating Temperature

040

Storage Temperature

-1050

Working Environment Relative Humidity

≤70% RH (No condensation)

Storage Environment Relative Humidity

≤80% RH (No condensation)

Auxiliary temperature acquisition device

Optional

Temperature test chamber

Optional

BMS communications

Optional

Test Clamps (One Choice from Four)



Split Polymer Clamps for Battery Testing

Figure 1. Split polymer clamps for battery testing



One-piece Polymer Clamps for Battery Testing

Figure 2. One-piece polymer clamps for battery testing



Small Alligator Clamps for Battery Testing

Figure 3. Small alligator clamps for battery testing



Large Alligator Clamps for Battery Testing

Figure 4. Large alligator clampsfor battery testing

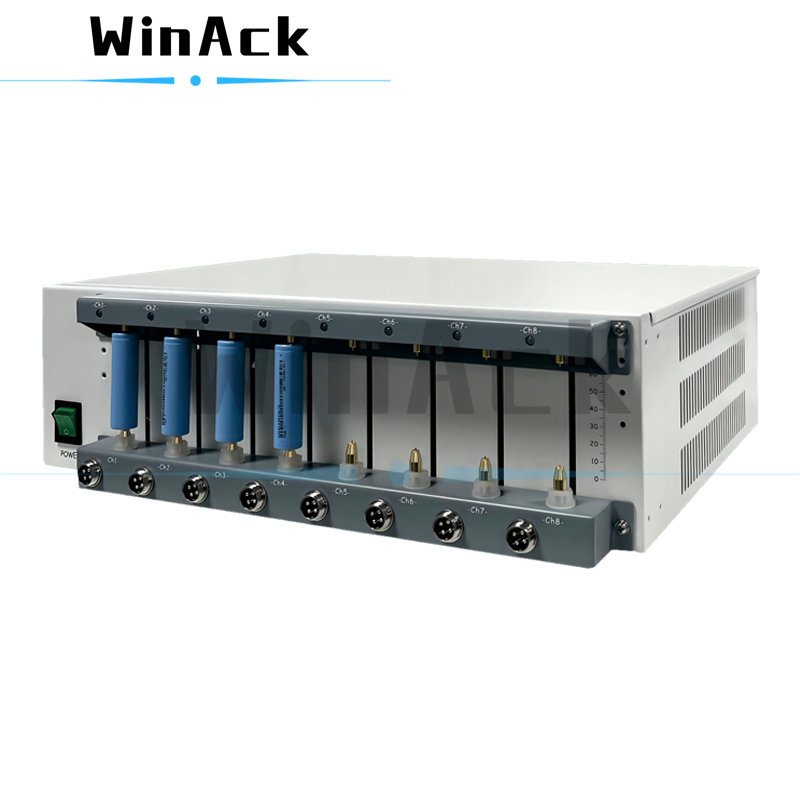

Lithium-ion Battery Cell Testing Equipment

Figure 5. Battery Cell Cycler for Battery Testing

* Reference picture (Picture just as reference, please in kind prevail)
