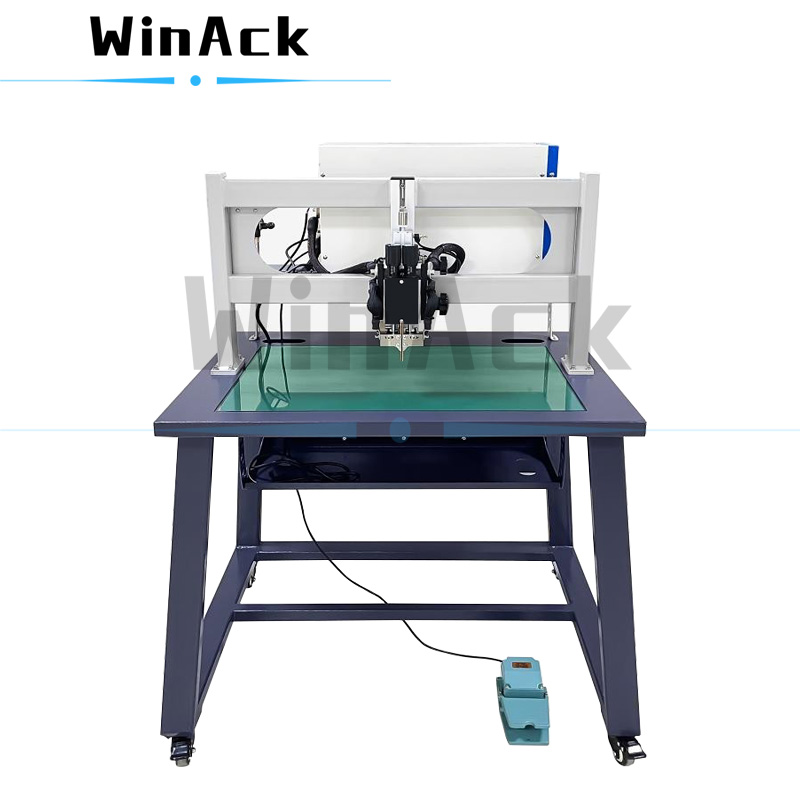

The spot welding machine for battery is one of the necessary battery pack assembly machines, which can weld pure nickel strips and nickel-plated steel strips with a thickness of 0.1~0.3mm.
Model:
WA-SW-M100JBattery type:
Cylindrical cellBusbar material:
Pure nickel strip or Nickel-plated steel stripBusbar thickness:
0.1~0.3mm (Customizable)Spot welder type:
Manual typeWelding head:
Pneumatic driveWarranty:
One year warranty with lifetime supportProduct Detail
Product overview:
The spot welding machine for battery is a professional battery pack assembly machine, equipped with a transistor type welding power, uses a capacitor energy storage transistor to control the discharge power, and uses the energy stored in the capacitor to continue welding. The welding current rises very fast, which is suitable for ultra-precision welding.
Scope of application:
The spot welding machine for battery is suitable for welding the battery module cell-to-cell current collector and the BMS collection harness.
It is usually used for spot welding of pure nickel sheets and nickel-plated steel sheets with a thickness of 0.1~0.3mm.
Features:
1) The welding current rises very fast, which is most suitable for ultra-precision welding.
2) The unique double-pulse welding technology uses different energy to discharge the welding workpiece twice to achieve better welding quality.
3) The welding power adopts precise digital control, which can pre-store 32 sets of welding parameters, which can be changed and recalled.
4) The discharge time can be accurately controlled, and the minimum division of the welding adjustment time is 10ns. The precise control makes the welding point stronger and more beautiful.
5) The welding pulse width is adjustable, the welding spatter is small, and the welding point will not change color.
6) There are three control modes: constant current, constant voltage, current and voltage combination modes.
7) The color LCD screen can easily display the welding parameters and curves.
Technical specifications
|
Product name |
Battery Spot Welding Machine |
|
Product model |
WA-SW-M100J |
|
Product type |
Manual type |
|
Effective welding stroke |
X-axis: 660mm (Customizable) |
|
Y-axis: 650mm (Customizable) |
|
|
Thickness of the busbar |
Nickel-plated steel strip: 0.1~0.3mm (≥0.2mm: need convex point or need to be slotted) |
|
Pure nickel strip: 0.1~0.3mm (≥0.2mm: need convex point or need to be slotted) |
|
|
Welding speed |
0.8~1.2s/spot |
|
Control mode |
1) Fixed current control 2) Fixed voltage control 3) Current and voltage combination control |
|
Adjustable range of welding time |
1.0ms~20.0ms Accuracy: 0.1ms |
|
Maximum welding current |
10000A |
|
Number of welding pulses |
2 |
|
Welding needles |
1.8mm or 3mm or 6mm |
|
Adjustable range of welding needles spacing |
0~20mm |
|
Power supply |
Single-phase AC220V±10% / 50Hz (Customizable) |
|
Power consumption: ≤1000W |
|
|
Size(W*D*H) |
About 830*725*1250mm |
|
Weight |
About 120kg |
The nickel strip spot welder is equipped with a rotary welding head, which effectively solves the problem of sticking welding needle during the spot welding of the pure nickel strip of the battery pack.
