In battery testing, the battery temperature sampler acts as AUX auxiliary channels to provide auxiliary temperature inputs to the battery cycler to monitor the battery temperature in real time.
Brand:
WinAckModel:
WA-BTS-AUX-TBTest channels:
8CH/SETTemp. Range:
-100℃~+100℃Note 1:
Accuracy: ±1℃ or ±0.1℃ or ±0.5℃Note 2:
Sensor: K-type thermocouple or NTC or PT100 thermal resistorProduct Detail
Battery Temperature Sampler
AUX Auxiliary Channels for Battery Cycler
Product Overview:
The battery temperature sampler is an auxiliary temperature acquisition device for DB-series battery cyclers and RB-series battery cyclers. And, use the same operating software as the battery cycler.
After connecting to the battery cycler and PC via an Ethernet switch, the battery temperature sampler can monitor the battery temperature in real time, which will be recorded together with the test data and can be used as a test variable condition.
Scope of Application:
In battery testing, the battery temperature sampler acts as AUX auxiliary channels to provide auxiliary temperature inputs for DB-series battery cyclers and RB-series battery cyclers. It is a real-time battery temperature monitoring system that can not only evaluate battery performance in more detail, but also provide temperature protection for battery testing.
Technical Specifications of AUX auxiliary channels
|
Product name |
Battery Temperature Sampler |
|
|
Product model |
Model 1 |
WA-BTS-AUX-TB-K |
|
Model 2 |
WA-BTS-AUX-TB-NTC |
|
|
Model 3 |
WA-BTS-AUX-TB-PT100 |
|
|
AC input voltage (Customizable) |
Single-phase 220VAC±10% / 50Hz |
|
|
Power |
300W |
|
|
No. of channels |
8 Channels/Cabinet |
|
|
Temperature Sensor |
Model 1: K-type thermocouple |
|
|
Model 2: NTC |
||
|
Model 3: PT100 thermal resistor |
||
|
Temperature range |
K-type thermocouple: -100℃~+800℃ |
|
|
NTC: -100℃~+327℃ |
||
|
PT100 thermal resistor: -100℃~+800℃ |
||
|
Temperature accuracy |
K-type thermocouple: ±1℃ |
|
|
NTC: ±0.1℃ |
||
|
PT100 thermal resistor: ±0.5℃ |
||
|
Temperature resolution |
K-type thermocouple: 0.01℃ |
|
|
NTC: 0.01℃ |
||
|
PT100 thermal resistor: 0.01℃ |
||
|
Data recording frequency |
1s |
|
|
Communication interface |
Ethernet |
|
|
PC operating system |
Micorsoft Windows |
|
|
Test data output |
Excel and PDF |
|
|
Cooling method |
Forced air-cooling |
|
|
Machine noise |
≤50dB |
|
|
Operating temperature |
0℃～40℃ |
|
|
Storage temperature |
-10℃～50℃ |
|
|
Working Environment Relative Humidity |
≤70% RH (No condensation) |
|
|
Storage Environment Relative Humidity |
≤80% RH (No condensation) |
|

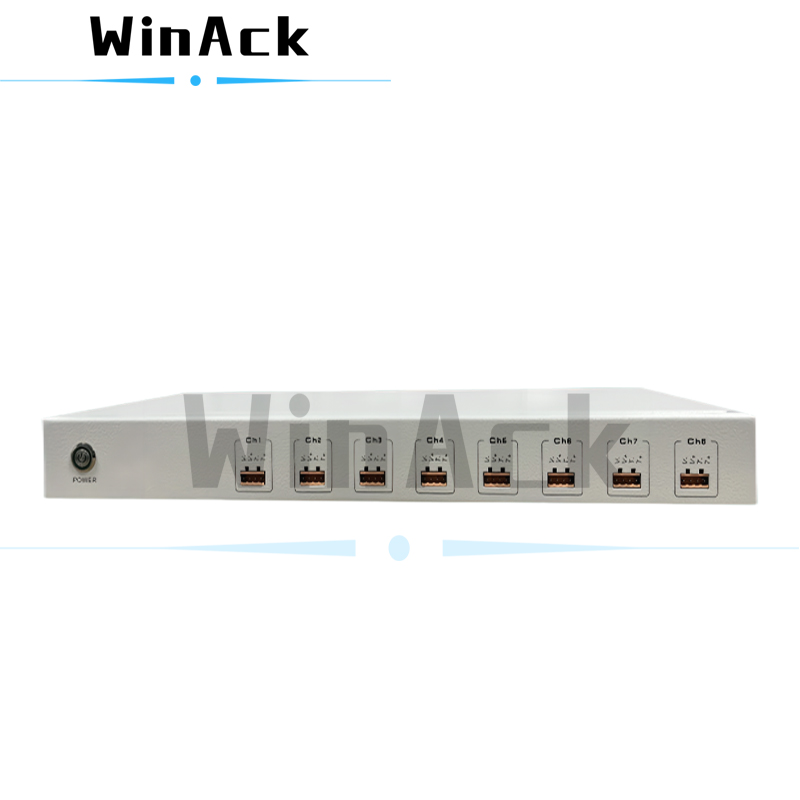

Figure 1. AUX Auxiliary Channels for Battery Cycler
* Reference picture (Picture just as reference, please in kind prevail)
