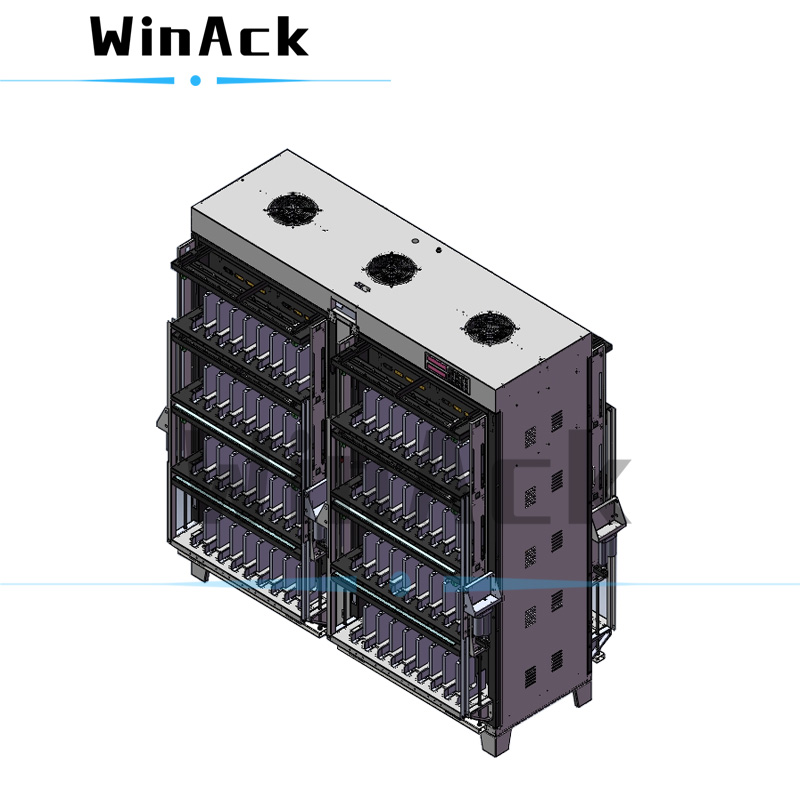

Prismatic Cell Battery Grading Machine

The prismatic cell battery grading machine is a professional prismatic cell capacity testing and grading system with high test accuracy and a wide range of compatible prismatic cell sizes.

  • Model:

    WA-BCG-P5V30A
  • Test channels:

    128CH/Cabinet (Customizable)
  • Voltage range/CH:

    0V~5V (Customizable)
  • Voltage accuracy:

    ± (0.1%RD + 0.1%FS)
  • Current range/CH:

    300mA~30A (Customizable)
  • Current accuracy:

    ± (0.1%RD + 0.1%FS)
  • Battery type:

    Prismatic cell
  • Testing and grading items:

    Capacity
  • Product Detail

Prismatic Cell Battery Grading Machine

Battery Capacity Testing and Grading System


Product overview:

The prismatic cell battery grading machine grades the prismatic cell capacity by performing several charge-discharge cycle tests on prismatic cells to obtain accurate battery capacity.

For battery cell manufacturers, the battery grading machine is one of the necessary machines in the cell manufacturing process.

For battery pack assemblers, battery capacity testing and grading must be carried out before assembling the battery pack, cells with high capacity consistency are grouped, and then the prismatic cell sorting machine is used for OCV/IR testing and sorting, thereby improving the consistency of the cells in the same battery pack, so as to assemble the battery pack with the best performance.



Battery formation and Grading System

(Both voltage and current can be customized)

Product model

Voltage range / CH

Current range / CH

WA-BCG-5V2A

0V~5V

20mA~2A

WA-BCG-5V3A

0V~5V

30mA~3A

WA-BCG-5V5A

0V~5V

50mA~5A

WA-BCG-5V6A

0V~5V

60mA~6A

WA-BCG-5V10A

0V~5V

100mA~10A

WA-BCG-5V20A

0V~5V

200mA~20A

WA-BCG-5V30A

0V~5V

300mA~30A

For more product models, please click "Battery Cell Formation and Grading System" to view or contact us.


Scope of application:

The prismatic cell battery grading machine is suitable for the capacity testing and grading of prismatic cells, and the compatible dimensions are as follows:

Length: 65~230mm

Width: 20~90mm

Height: 90~230mm

Electrode terminal center distance: 45~160mm.


Features:

1) Energy feedback and energy saving

The prismatic cell battery grading machine adopts bidirectional AC/DC inverter modules, and the energy feedback technology can feed the electric energy discharged by the battery back to the power grid, which can save electricity costs and is environmentally friendly.

Compared with the traditional battery grading equipment, the power consumption is reduced by more than 40%.

2) Independent control for each channel

The prismatic cell grading machine has 128 channels, and each channel is equipped with independent constant current source and constant voltage source, so each channel can be independently controlled without interfering with each other.

3) High test accuracy

The prismatic cell grading equipment adopts four-wire test connection to ensure high measurement accuracy, voltage accuracy: ±(0.1%RD + 0.1%FS), current accuracy: ±(0.1%RD + 0.1%FS).

4) Powerful control software

The battery grading software is powerful, which is simple and easy to use.

Graphical operation interface is adopted, which is intuitive and clear. It can display the voltage, current, time, capacity and other data of each battery at the same time and can set different colors to display the corresponding working status and abnormal conditions.

5) Computer control

The battery grading system is controlled by AVR single-chip microcomputer, which can be connected to a computer for control and can save all test data and curves. It can also be operated directly through the control panel of the equipment to complete the test and sort through the setup process.

6) Modular design

It adopts modular design and is easy to maintain.

7) Real-time display of the working status of each channel

Real-time detection and display of the status of each battery, if there is an abnormality, the channel will stop working and the indicator will light up, and the normal operation of other channels will not be affected.

8) Strong compatibility

The power tube uses a field effect tube, which is compatible with lower voltage discharge batteries, such as LFP cells.

9) Powerful protection function

The battery cell capacity grading equipment has protection functions such as over-voltage protection, under-voltage protection, over-current protection, under-current protection, over-capacity protection, power-off protection, and data breakpoint recovery.


Technical specifications

The entire testing and grading cabinet

Product name

Battery Capacity Testing and Grading System

Product model

WA-BCG-P5V30A

Number of channels / Set

128CH

Power supply

Three-phase five-wire system AC380V±10% / 50Hz (Customizable)

Dimension(W*D*H)

2000mm*931mm*1840mm

Cabinet color

Gray-black (Customizable)

Type of clamps

Flat head clamps (Customizable)

Clamps spacing

88.5mm (Customizable)

Applicable battery model

Prismatic cell

Length: 65~230mm

Width: 20~90mm

Height: 90~230mm

Electrode terminal center distance: 45~160mm

Channel control mode

Control modes such as start, stop, pause, continue and protection.

Each channel has an independent constant voltage and constant current hardware control circuit.

Fine-tuning and calibrating the accuracy of charging current and discharging current of each channel.

Power factor

≥0.99

AC current distortion rate

≤2%

Overall charging efficiency

≥75%

Feeder conversion efficiency

≥70%

Working power consumption

≤23KW

Equipment failure rate

<1%

Operating environment

Ambient temperature: -10~40

Relative humidity: 80%

Cooling method

Natural intake and upward exhaust

Channel Specifications

Voltage measurement range

DC 0~5V

Battery voltage range

Charge: DC 0~4.5V

Discharge: DC 4.5~2V

Constant voltage range

DC 2~4.5V

Voltage accuracy

± (0.1%RD + 0.1%FS)

Resolution: 1mV

Voltage stability

≤(±1mV)

Current range

Charge: DC 300mA30A

Discharge: DC 300mA30A

Current accuracy

± (0.1%RD + 0.1%FS)

Resolution: 1mA

Current stability

≤(±1mA)

Software function

Control method

Computer control, with scanning system

Communication method

RS485 communication (Baud rate: 57600)

Process settings

Number of test steps: ≤32

Number of cycles: ≤256

Charge mode

Constant current, constant voltage, constant current and constant voltage

Charging cut-off condition

Voltage, current, time, capacity, -V

Discharge mode

Constant current

Discharging cut-off condition

Voltage, time, capacity

Protective function

Over-voltage protection, under-voltage protection, over-current protection, under-current protection, over-capacity protection, power-off protection, and data breakpoint recovery.

Step time range

0999min/step

Time accuracy

≤±0.1%

Sampling inspection cycle

≤8s

Battery grading and sorting basis

Capacity, time, open circuit voltage, discharge platform, etc.

Data processing

It can record voltage, current, time, capacity and other data, and automatically calculate the constant current charging ratio.




Prismatic Cell Capacity Testing and Grading System
