The prismatic cell sorting machine is a professional battery OCV/IR testing and grading system, and is one of the necessary equipment for the prismatic cell battery pack production line.
Model:
WA-AS-B6BBattery type:
Prismatic cellBattery feeding method:
Manual feedingTesting and grading items:
OCV/IRWarranty:
One year warranty with lifetime supportProduct Detail

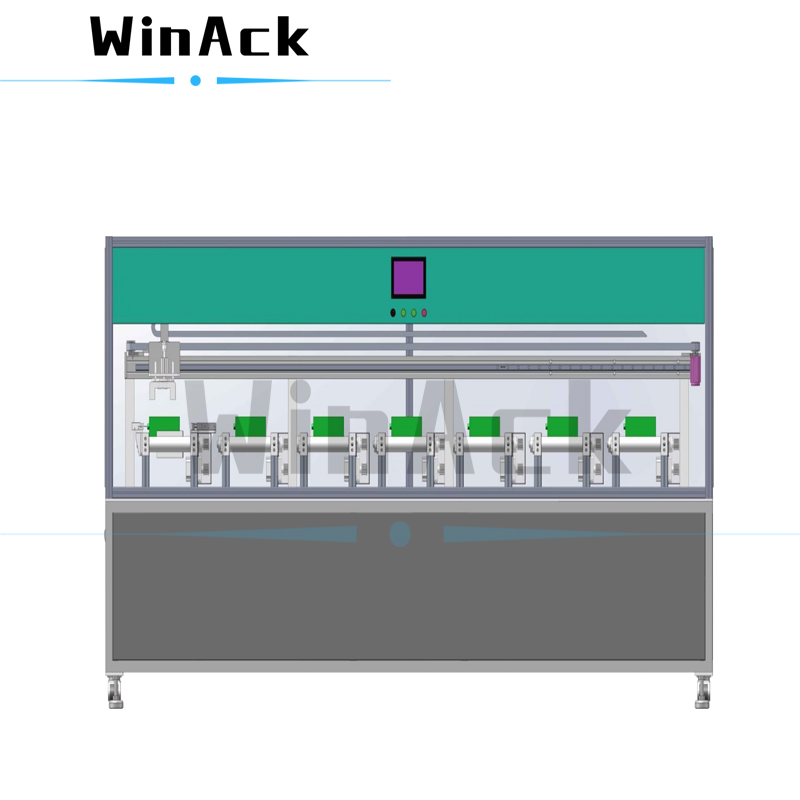

Prismatic cell sorting machine
Battery cell OCV/IR testing and grading system
Product overview:
The prismatic cell sorting machine is one of the necessary equipment for prismatic cell battery pack assembly line. Before assembling the battery module, it is necessary to use this professional battery OCV/IR testing and grading system to group the prismatic cells to improve the performance consistency of the prismatic cells, thereby improving the performance and service life of the battery pack.
Manually feed the prismatic cells to the feeding area, and the prismatic cell sorter will automatically send the prismatic cells to the battery OCV/IR testing area. After the test is completed, the manipulator of the prismatic cell sorting machine will assign the prismatic cells to the channels of different levels according to the set OCV/IR level, and manually remove the cells to complete the OCV/IR testing and sorting.
Scope of application:
The prismatic cell sorting machine is equipped with a high-precision battery OCV/IR tester, which is suitable for the OCV/IR testing and grading of the prismatic cells.
Features:
1) Wide range of compatibility
The prismatic cell sorting machine can be compatible with prismatic cells of multiple sizes, reducing equipment investment.
2) Simple operation and easy use
The prismatic cell sorter is equipped with HMI, which makes the operation very simple and easy to use.
3) High test accuracy
The prismatic cell sorter is equipped with a high-precision battery OCV/IR tester with high test accuracy.
4) Simple structure and easy maintenance
The prismatic battery sorter has a simple structure and is easy to maintain.
5) Four-wire measurement
The battery test is a four-wire measurement with high test accuracy.
6) Optional: battery barcode scanner
The battery cell barcode scanner is optional to match the test data with the corresponding battery cells.
Technical specifications
|
Product name |
Prismatic Cell Sorting Machine |
|
Product model |
WA-AS-B6B |
|
Number of sorting channels |
6 Channels (5 OK Channels + 1NG Channel) |
|
Applicable type of battery cells |
Prismatic cells |
|
Sorting capacity |
10~15PPM |
|
Sorting efficiency |
About 600~900 Cells/Hour |
|
Battery cells loading method |
Manual feeding to the feeding area |
|
Battery tester |
Hioki 3561A or HP3561 |
|
Battery cell testing and grading items |
OCV/IR |
|
Measurement of Internal resistance (IR) |
Test range: 0~60mΩ Test accuracy: ±0.5%rdg Test resolution: 0.1mΩ |
|
Measurement of Open circuit voltage (OCV) |
Test range: 0~20V Test accuracy: ±0.015%rdg Test resolution: 0.1mV |
|
Operation and control module |
Touch screen & PLC |
|
Machine failure rate |
≤2% |
|
Possibility of damaging the cells |
≤0.1% |
|
Optional function |
Battery cell barcode scanner |
|
Power supply |
Single-phase AC220V±10% / 50Hz (Customizable) |
|
Power: 600W |
|
|
Compressed air pressure |
0.5~0.8MPa |
|
Size(W*D*H) |
3500*2500*1500mm |
|
Weight |
About 400kg |
Equipment configuration
|
NO. |
Spare parts |
Brand |
|
1 |
Air cylinder |
AIRTAC or other well-known brands |
|
2 |
Linear guide rail |
HIWIN or other well-known brands |
|
3 |
PLC |
XINJIE or other well-known brands |
|
4 |
HMI |
XINJIE or other well-known brands |
|
5 |
Switching power supply |
MEAN WELL |
|
6 |
Electric relay |
OMRON or Shanghai Electric |
|
7 |
Inductorium |
AIRTAC or other well-known brands |
|
8 |
Control switch |
CHINT |
|
9 |
Stepper motor |
Leadshine or Inovance or other well-known brands |
|
10 |
Battery tester |
Hioki 3561A or HP3561 |
