The CCD visual inspection machine takes pictures of the battery cells through an industrial camera, and then automatically compares it with a preset standard and judges whether it meets the standard.
Model:
WA-AOI-M5035Battery type:
Cylindrical cellInspection items:
Battery positive and negative polarity inspectionOrigin:
Made in ChinaDelivery time:
7~15 days (Negotiable)Warranty:
One year warranty with lifetime supportProduct Detail
Product overview:

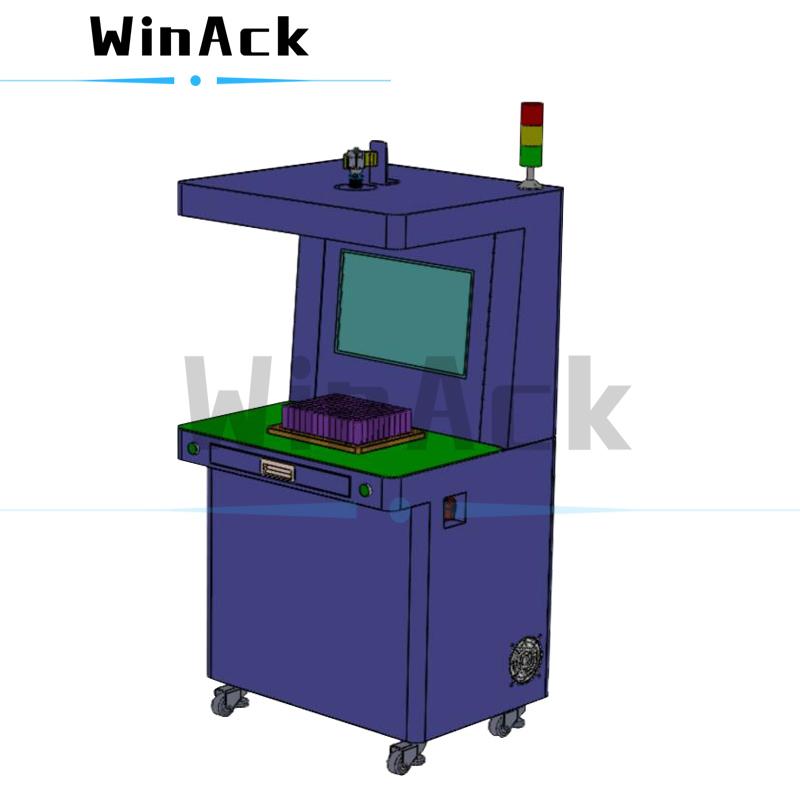

The CCD visual inspection machine for battery pack is a tester that takes pictures of the battery cells through a high-definition industrial camera, and then automatically compares it with a preset standard and judges whether it meets the standard.
Scope of application:
The CCD visual inspection machine for battery pack is suitable for the positive and negative polarity inspection of the cylindrical battery cell module before assembling the busbar.
Features:
1) The cylindrical battery cell polarity inspection tester can perfectly replace manual inspection, with a false positive rate of 0%.
2) The programming is simple, and the judgment standard can be preset according to the series and parallel design of the battery module.
3) The cylindrical battery cell polarity inspection tester checks and judges whether it is OK according to the preset standard, and it is easy to use.
4) If the battery cell is installed in the wrong direction, it will be automatically judged as NG, and the direction needs to be adjusted manually.
Technical specifications
|
Product name |
Battery Automated Optical Inspection Machine |
|
Product model |
WA-AOI-M5035 |
|
Inspection items |
Battery positive and negative polarity inspection |
|
Maximum inspection range |
500mm*350mm (Customizable) |
|
CCD lens object distance |
500~600mm |
|
Inspection time |
About 3~4S |
|
Ambient temperature |
-10~+35℃ |
|
Air humidity |
＜90%RH |
|
Power supply |
Single-phase AC220V±10% / 50Hz (Customizable) |
|
Power consumption: ≤200W |
|
|
Size(W*D*H) |
About 700*600*1780mm |
|
Weight |
About 120kg |
The cylindrical battery cell automated optical inspection machine can automatically inspect the battery polarity and check whether it is the same as the designed series-parallel combination.
Cylindrical battery cell polarity inspection tester is an optional machine for battery pack manufacturers, which is a perfect substitute for manually checking whether the battery cells are reversed.
