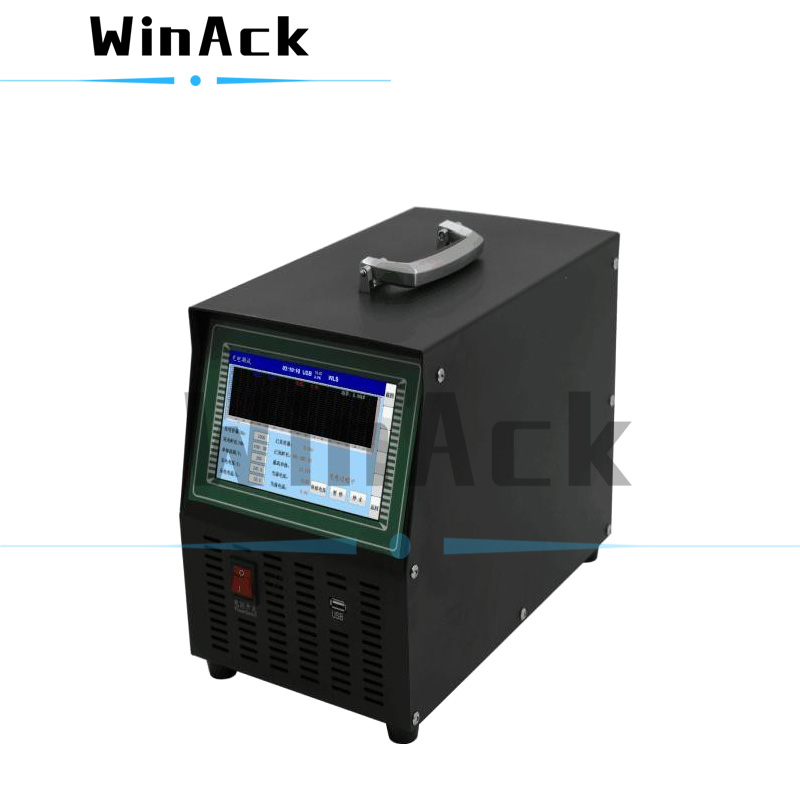

The battery module/pack test system is a portable battery charge discharge test equipment, as well as a professional EV battery tester, and is compatible with electrical networks globally.
Model:
WA-BTS-P300V120ACertificate:
CE Certificate issued by TÜV, UL CertificateTest channels:
1CH/CabinetVoltage range/CH:
6V~300V (Customizable)Voltage accuracy:
±0.05% F.S.Current range/CH:
±120A (Customizable)Current accuracy:
±0.05% F.S.Remark 1:
Portable battery testerRemark 2:
Compatible with electrical networks globallyProduct Detail
EV Battery Tester
Portable Battery Charge Discharge Test Equipment
Functional description:
The battery charge discharge test equipment is small in size and can be operated directly on the touch screen without connecting to a computer. It is a professional and reliable portable battery tester.
This battery module/pack test equipment has multiple charge and discharge modes, and can perform charge and discharge tests, activation and road spectrum tests, etc.
Applicable range:
This portable battery tester is suitable for EV battery modules, energy storage battery modules, electric motorcycle batteries, e-bike batteries and other lithium-ion battery modules and battery packs.
It can be used for battery charge discharge test, battery aging, battery SOC adjustment, module cell balance repair, battery activation, battery quality check and inspection, battery application condition simulation test, etc.
Advantages:
1) Small size and Portable design
This battery module/pack test system is small in size and equipped with a touch screen, which can be used without connecting to a computer. It is designed as a portable battery tester.
2) Support global power grids
This portable battery tester is compatible with electrical networks globally, especially for businesses targeting global markets.
3) Wide range: 6V~300V
The voltage range of this lithium-ion battery charge discharge test equipment is 6V~300V, which can meet the test requirements of battery modules/packs of various specifications.
4) Quick charge with 20KW power
The maximum output power of this EV battery testing equipment is up to 20KW, which can meet the needs of fast charging.
5) Data can be checked from the cellphone APP
The cellphone can be connected to this portable battery tester through WIFI, the test steps can be edited directly on the cellphone, and the test data can be downloaded on the cellphone and forwarded to the e-mail.
6) Modular design, easy to maintain
The portable battery tester has a modular design for easy maintenance.
7) Multiple communication port
Support multiple communication ports, powerful communication functions have a wider range of applications.
8) Integrate cell voltage sampling
Integrated battery cell voltage sampling tester to accurately assess the condition of each cell in the battery pack.
Technical specifications
|
Product name |
Battery Test Systems |
|
|
Product model |
WA-BTS-P300V120A |
|
|
Number of test channels |
1CH/Cabinet |
|
|
Product type |
Portable battery tester |
|
|
1 |
Input voltage (Three-phase) |
208VAC±10%，10KW output 380VAC±15%, 20KW output 480VAC+10%,20KW output Attention: Compatible with Global Power Grid. |
|
2 |
Energy consumption |
Energy Feedack |
|
3 |
DC side voltage |
6V~300V |
|
4 |
Voltage accuracy |
±0.05% F.S. |
|
5 |
DC side current |
-120A~120A |
|
6 |
Current accuracy |
±0.05% F.S. |
|
7 |
Power |
20KW |
|
8 |
Current Rise Time |
≤5ms (10%~90%) |
|
9 |
Current Switch Time |
≤10ms (-90%~90%) |
|
10 |
Switch efficiency |
≥90% |
|
11 |
Charge-discharge mode |
CC\CV\DC\DV\CP\DR\Activation\Pulse\Road spectrum |
|
12 |
Battery communication port |
CANFD\RS485\Ethernet Support BMS communication |
|
13 |
Built-in BMS power output |
123A |
|
14 |
Aux voltage acquisition （Optional） |
32CH |
|
Range：0~10V |
||
|
Accuracy：±0.1%F.S. |
||
|
15 |
Scanner |
Optional |
|
16 |
IP grade |
IP21 |
|
17 |
Dimensions(W*D*H) |
340*600*600mm |
|
18 |
Weight |
＜55KG |
