Lithium battery drop tester is used for simulating battery free fall drop test and battery drop impact test in standards such as IEC62133, UL 2054 and UL 1642, etc.
Model:
WA-ST-2KG-JDTNote 1:
Drop Type: Free fall dropNote 2:
Drop Method: Pneumatic dropNote 3:
Drop Height: 300~1500mm (Adjustable & Customizable)Note 4:
Test Loading: ≤2KG (Customizable)Note 5:
Lifting Method: ElectricProduct Detail
Lithium Battery Drop Tester
Free Fall Drop Test | Drop Impact Test
Functional Description:
The lithium battery drop tester adopts a pneumatic structure design to simulate the free fall drop process of the battery during use or transportation, and evaluate the drop impact of the battery to confirm that its safety meets the requirements of the corresponding test standards.
The tested battery is clamped with a special clamp. After pressing the drop button, the clamp cylinder is released, and the tested battery will be subjected to a free fall drop test. It is also equipped with a height scale, and the drop height can be adjusted accordingly according to the test standard.
Scope of Application:
The lithium battery drop tester is used for battery free fall drop test, battery drop test or battery drop impact test in battery safety performance tests.
Applicable test standards:
1) IEC 62133-2:2017/A1:2021, Secondary cells and batteries containing alkaline or other non-acid electrolytes – Safety requirements for portable sealed secondary cells, and for batteries made from them, for use in portable applications – Part 2: Lithium systems - 7.3.3 Free fall
2) UL 2054 Ed. 3-2021, Standard for Safety for Household and Commercial Batteries - 21 Drop Impact Test
3) Etc.
Features:
1) The drop height range of the battery drop impact tester is 300~1500mm, which is electrically raised and lowered to meet the requirements of different test standards.
2) The tested battery is clamped by a pneumatic clamp and the drop angle is adjustable.
3) This battery free fall drop tester adopts a simple design, is easy to use and low cost.
4) The battery drop impact tester can be customized according to the maximum size and maximum weight of the tested batteries to meet the test requirements.
5) Explosion-proof type battery drop test chambers can be customized according to requirements to further improve the safety of battery drop tests.
Technical Specifications of Battery Drop Impact Tester
|
1. Product |
|
|
1.1 Product Name |
Battery Drop Tester for Battery Safety Testing |
|
1.2 Product Model |
WA-ST-2KG-JDT |
|
1.3 Product Type |
Battery Free Fall Drop Impact Test Machine |
|
2. Application |
|
|
2.1 Application |
The battery drop tester is used for battery free fall drop test, battery drop test or battery drop impact test in battery safety performance tests. |
|
3. Dimension & Weight |
|
|
3.1 Overall Dimensions |
W700*H900*D2200mm (Customizable) |
|
3.2 Weight |
About 190KG |
|
4. AC Input Power |
|
|
4.1 AC Input Power |
Single-phase 220VAC±10%, 50Hz±0.5Hz, 60W (Customizable) |
|
5. Performance |
|
|
5.1 Drop Height |
Range: 300~1500mm (Adjustable) |
|
Resolution: 1mm |
|
|
Lifting method: Electric |
|
|
5.2 Max. Weight of Test Sample |
≤2KG (Customizable) |
|
5.3 Max. Size of Test Sample |
W200*D200*H200mm (Customizable) |
|
5.4 Drop Type |
Free fall |
|
5.5 Drop Method |
Pneumatic drop |
|
5.6 Pneumatic Pressure |
≤1.0MPa |
|
5.7 Falling Floor Tile |
Optional: A3 steel plate, acrylic plate, marble plate, bakelite plate or cement plate. |
|
6. Standard Compliance |
|
|
6.1 Standard Compliance |
1) IEC62133 - 7.3.3 Free fall 2) UL 2054 - 21 Drop Impact Test 3) Etc. |

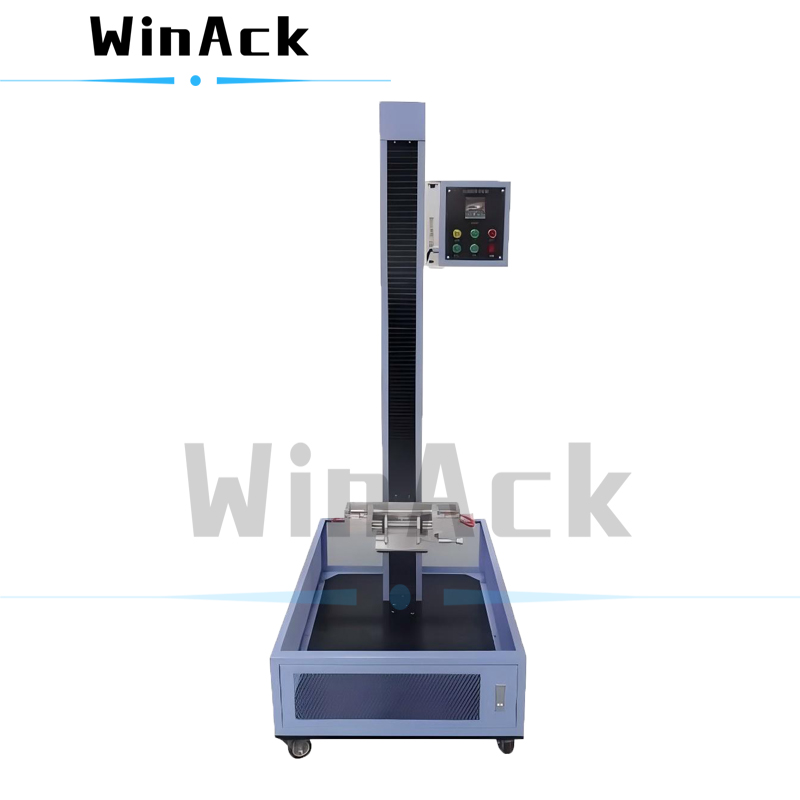

Figure 1. Lithium Battery Drop Tester for Battery Safety Testing (2KG)
* Reference picture (Picture just as reference, please in kind prevail)
Thermal cycling test chamber is a professional program-controlled high and low temperature test chamber, which can be linked with the battery cell cycler for battery testing projects.
Altitude thermal chamber is a professional battery safety testing equipment integrating high altitude simulator and thermal test chamber, and can be linked with battery cycler to make battery testing easier.

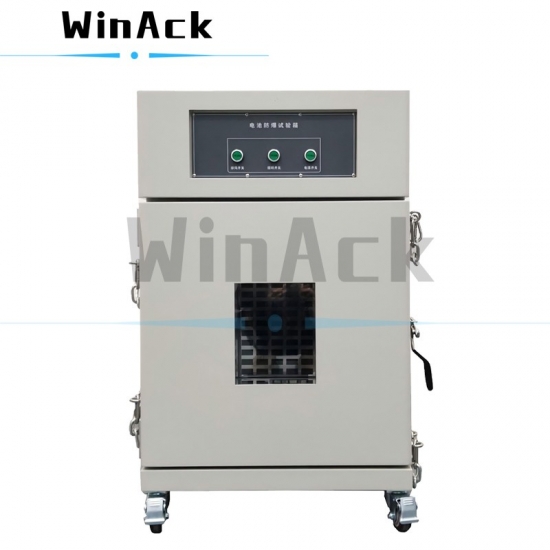

Explosion-Proof Test Chamber is a professional battery test safety chamber used for battery overcharge tests, battery forced discharge tests, battery over-discharge protection tests.
