Regenerative Battery Pack Test System | Battery Charge Discharge Test Equipment

The battery charge discharge test equipment is a professional regenerative battery pack test system for quality control and performance testing. The voltage, current, and power ranges can be customized.

  • Model:

    WA-BTS-RJ550V500A2CH550kW
  • Test channels:

    2CH/Cabinet (Customizable)
  • Voltage range/CH:

    30V~550V (Customizable)
  • Voltage accuracy:

    ±(0.05%FS+0.05%RD)
  • Current range/CH:

    ±500A (Customizable)
  • Current accuracy:

    ±(0.05%FS+0.05%RD)
  • Product Detail

Regenerative Battery Pack Test System

Battery Charge Discharge Test Equipment


Product description:

The battery charge discharge test equipment is a professional and reliable regenerative battery pack test system, by charging and discharging battery packs such as EV batteries, HEV batteries, ESS batteries, and telecommunications system batteries, and collecting test data in real time, the battery charge discharge test equipment obtains battery electrical performance test data, which provides an accurate and reliable basis for battery quality control, R&D and application simulation.

The regenerative battery pack test system is equipped with a bidirectional AC/DC converter, which can regenerate battery discharge energy to the AC power grid, saving power and testing costs.


Scope of application:

The battery charge discharge test equipment can be used to test the electrical performance of various types of batteries such as lithium batteries, Ni-Cd batteries, NiMH batteries, lead-acid batteries, and flow batteries, etc.

In addition, the regenerative battery pack test system can also be used to perform aging tests on various electronic loads, such as charger aging tests.


Main test items:

1. Battery pack capacity test.

2. Battery pack charge/discharge performance test.

3. Battery pack charge/discharge efficiency test.

4. Battery pack charge retention and recovery ability test.

5. Battery pack cycle life test.

6. Battery pack temperature characteristics test.

7. Battery pack DC internal resistance test.

8. Battery pack pulse charge/discharge test.

9. Battery pack working condition simulation test.

10. Battery pack over-charge and over-discharge rate affordability test.

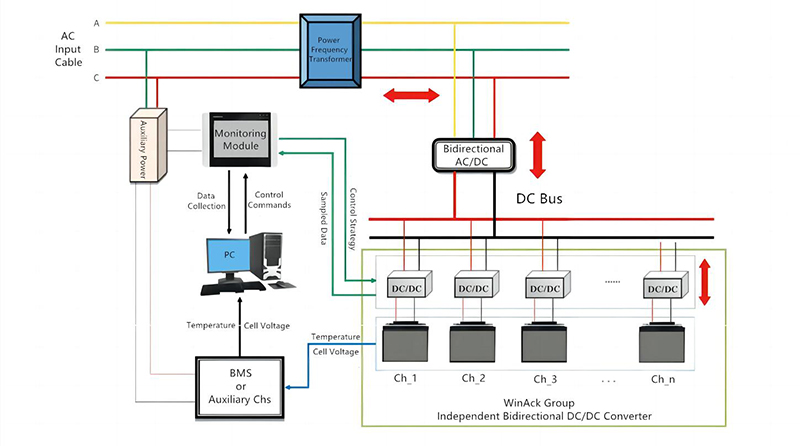

System Topology

System Topology of Battery Charge and Discharge System

Figure 1. System Topology of Regenerative Battery Pack Test System


Features:

1. Regenerative design, using a common DC bus topology, energy conversion between DC channels can be achieved. And, battery discharge energy is preferentially regenerated between DC channels.

2. Regenerative design, if the DC channels cannot be balanced, the extra battery discharge energy will be regenerated to the AC power grid, which saves power and test costs.

3. The power control scheme of DSP&IGBT is adopted to achieve high-speed and high-precision control of electric energy.

4. The margin and timely power control algorithm ensures the stable and reliable operation of regenerative battery pack test system.

5. The output voltage range, current range, and power range can be freely set, and it is compatible with battery packs of various specifications and models.

6. AC input adopts adaptive technology and does not need to distinguish the phase sequence of the AC power grid.

7. Advanced software phase locking control technology, THD5%.

8. Scan the QR code to automatically bind the test process file, and scan the QR code to automatically start testing, avoiding manual errors and improving testing efficiency.

9. Supports automatic judgment of unqualified batteries to improve testing efficiency.


Technical Specifications of Regenerative Battery Pack Test System

Product name

Battery Charge Discharge Test Equipment

Product model

WA-BTS-RJ550V500A2CH550kW

Product type

Regenerative type

Regeneration efficiency

94% (Full load)

Energy regeneration features

a) Battery discharge energy is preferentially regenerated between DC channels.

b) If the DC channels cannot be balanced, the extra battery discharge energy will be regenerated to the AC power grid.

AC Input Side

AC input power

Voltage: 380VAC±15%

Frequency: 50Hz±2Hz

(Customizable)

a) Three-phase five-wire power distribution system;

b) Grounding resistance 5Ω.

Power factor

99%

Full load

The Harmonic Distortion

THD5%

Full load

AC input protections

AC power grid under-voltage protection



AC power grid over-voltage protection



AC power grid over-current protection

Includes circuit breaker over-current protection.

AC power grid over-load protection



AC power grid input phase loss protection



AC power grid frequency exception protection



Transformer over-temperature protection



Lightning protection



Anti-islanding effect protection



DC Output Side

Output channel

No. of channels

2 channels/cabinet

Customizable

Channels used in parallel

Yes

Up to 1000A after paralleling of circuits.

Channel control mode

Independent control of each channel



Detection and Sampling

Four-wire measurement



Voltage/CH

Charge range

DC: 0V~550V

Customizable

Discharge range

DC: 550V~30V

Customizable

Accuracy

±(0.05%FS+0.05%RD)

Customizable

Resolution

0. 1mV



Current/CH

Range

DC: ±500A

Customizable

Accuracy

±(0.05%FS+0.05%RD)

Customizable

Resolution

0. 1mA



Maximum power/CH

275kW



Maximum power/Cabinet

550kW



Current rise time

30ms

10%~90% (Battery load)

Current switch time

60ms

-90%~+90% (Battery load)

Data collection interval

10ms

Includes current and voltage values.

DC output protections

Under-voltage protection



Over-voltage protection



Short-circuit protection



Over-temperature protection



Reverse connection protection



Over-current protection



Channel communication exception protection

Automatically disconnect output if communication exception occurs.

Power outage protection

Automatically disconnect contactor during power outage

Emergency stop protection

Includes emergency stop button.

Other Parameters

Heat dissipation

Air forced cooling



IP Rating

IP20



Sound

≤75dB

Measured from 1 meter away.

Lightning protection level

Level 2



AC cable lead-in method

Bottom lead-in



DC cable lead-out method

Bottom lead-out

Customizable

Output cable

5 m copper cable with tinned copper nose terminals

Customizable

BMS communication interface

Each channel contains one CAN communication

Each channel is configured with one 12V power supply.

Cabinet color

WinAck standard cabinet colors

Customizable

Reference dimensions

W1840*D1100*H1900mm

Subject to actual situation.

Usage Environment Requirements

Altitude

1000m



Working temperature

- 10~45



Relative humidity

90%RH

Non-condensing

Storage temperature

-20~50



Installation environment

a) No strong vibration and impact;

b) No strong electromagnetic interference.

a) The intensity of external magnetic field induction shall not exceed 0.5m;

b) The vertical slope of the installation should not exceed 5%.

Usage environment

a) No explosive hazardous media;

b) Does not contain harmful substances that corrode metal and damage insulation;

c) Does not contain conductive media;

d) Mold is not allowed.




Software Functions of Regenerative Battery Pack Test System



Items

Function description

Remarks

Database type

MYSQL



Data storage interval

0.1S~9999S

Configurable

Nested Loop function

Max. support 5 layers

Hierarchical display of process flow.

Editable number of steps

Max. 9999



Number of cycles

1~9999



DBC file parsing function

Supports importing and editing of standard format DBC files



Working condition simulation function

Supports import of EXCEL working condition files

Contains current working condition files and power working condition files; time and moment are optional.

Charge mode

Constant current charge

If you have any other charge mode requirements, please consult us.

Constant voltage charge

Constant current to constant voltage charge

Constant power charge

Constant resistance charge

Power follower

Current follower

Discharge mode

Constant current discharge

If you have any other discharge mode requirements, please consult us.

Constant voltage discharge

Constant power discharge

Constant resistance discharge

Power follower

Current follower

Cut-off condition

(Jump condition or if condition)

Working step time

a) BMS data conditions require BMS to upload relevant data to be valid.

b) If you have any other cut-off condition requirements, please consult us.

Voltage

Current

Capacity (Total capacity, charging capacity, discharging capacity)

Maximum cell voltage

Minimum cell voltage

Maximum cell temperature

Cell voltage difference

Cell temperature difference

SOC

Global control conditions

Output voltage range

BMS data conditions require BMS to upload relevant data to be valid.

Current range

Power range

Cell voltage range

Cell temperature range

Cell voltage difference range

Cell temperature difference range

Unqualified battery judgment conditions

Working step capacity

It is optional to continue to the next work step or stop testing after being judged as unqualified.

Total capacity

End current

Battery voltage

Working Step energy

Battery voltage difference

Battery temperature difference

SOC

Software protections

Output limit protection

The output voltage, current and power range can be set.

BMS data anomaly protection

Including cell voltage, cell temperature, cell voltage difference, cell temperature difference, etc.

Communication abnormality protection

a) PC communication abnormality protection;

b) BMS data abnormality protection.

Abnormal power outage protection

Support work step continuation function.

Voltage over range protection

When the voltage is out of range, the work step cannot be performed.

Reverse connection protection

When the connection is reversed, the work step cannot be performed.

Data output

Support single channel data export.



Export data in batches.



Export content is optional.



Supports curve graph export.



Supports exporting after data filtering.



Data list content

Detailed data list



Cycle list



Work step statistics list



Log file



Test process



Test report



Curve graphics



Permission management

Supports three-level permission management functions of super administrator, test administrator, and test operator.



MES uploading function

Upload data to MES as required.

Optional

Scan code function

Scan the barcode or QR code to automatically start the test.

We can set whether to enable this function.

Supports automatic binding test process by scanning barcode or QR code.

Automatically bind the test process to the battery pack coding rules and automatically start the test.

LAN function

Supports automatic synchronization of test process files between multiple PCs in the LAN.

A separate server is required.

Supports searching test data between multiple PCs in the LAN.

Test data between different PCs can be quickly searched, and scan code search is supported.

Test result judgment

Supports automatic judgment of unqualified batteries.

Unqualified conditions can be set freely and test results are automatically generated.

DCIR test

Support

Test parameters can be set.

Support database migration

Support




Reference Standards:

1) GB/T 18386.1-2021 Test methods for energy consumption and range of electric vehicles—Part 1: Light-duty vehicles

2) GB/T 18386.2-2022 Test methods for energy consumption and range of electric vehicles—Part 2: Heavy-duty commercial vehicles

3) GB/T 31484-2015 Cycle life requirements and test methods for traction battery of electric vehicle

4) GB/T 31486-2015 Electrical performance requirements and test methods for traction battery of electric vehicle

5) GB 38031-2020 Electric vehicles traction battery safety requirements

6) GB/T 18385-2005 Electric vehicles Power performance Test method

7) GB/T 31467.1-2015 Lithium-ion traction battery pack and system for Electric vehicles—Part 1: Test specification for High power applications

8) GB/T 31467.2-2015 Lithium-ion traction battery pack and system for Electric vehicles—Part 2: Test specification for High energy applications


Battery Charge Discharge Test Equipment

Figure 2. Regenerative Battery Pack Test System

* Reference picture (Picture just as reference, please in kind prevail)

Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!
Related Products
Battery Life Analyzer
Battery Life Cycle Tester

High-quality battery life cycle tester manufacturer, professional battery life analyzer supplier, with test software and test data processing software, please contact us for more details.

Read More
Battery System Tester
EV Battery Testing Equipment | Battery Energy Storage System Tester

The battery system tester is a professional EV battery testing equipment and battery energy storage system tester with powerful test functions. It is suitable for the test of high-power battery packs.

Read More
Battery Cycler
Battery Cycler | Battery Module Test Equipment | Battery Pack Test System

The battery cycler is a professional battery module test equipment and battery pack test system, suitable for EV battery, energy storage battery pack and regenerative battery pack, etc.

Read More
Lithium-ion Battery Testing Equipment
Professional Battery Tester Machine | Lithium-ion Battery Testing Equipment

The lithium-ion battery testing equipment is a professional battery tester machine with single-channel independent control and user-friendly operating software in English.

Read More
Portable EV Battery Tester
Portable Battery Charge Discharge Test Equipment | EV Battery Tester

The battery module/pack test system is a portable battery charge discharge test equipment, as well as a professional EV battery tester, and is compatible with electrical networks globally.

Read More
Battery Charge Discharge Machine
Battery Charge Discharge Machine | Battery Aging Machine | WinAck

The battery aging machine is essentially a battery charge discharge machine, used to simulate and accelerate the aging process of the batteries to test the performance of the finished battery packs.

Read More
Power Bank Tester
Power Bank Tester | Power Bank Capacity Tester | WinAck

This professional and powerful power bank tester is specially designed for battery aging, capacity testing, quality inspection and cycle life testing of portable power banks.

Read More
Battery Charger and Discharger
High Voltage Battery Cycler | Battery Charger and Discharger

This high voltage battery cycler is a regenerative battery charger and discharger with powerful test functions and capabilities, suitable for testing batteries of Electric Vehicles, Electric Buses and Energy Storage Systems.

Read More
Leave A Message
If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Home

Products
