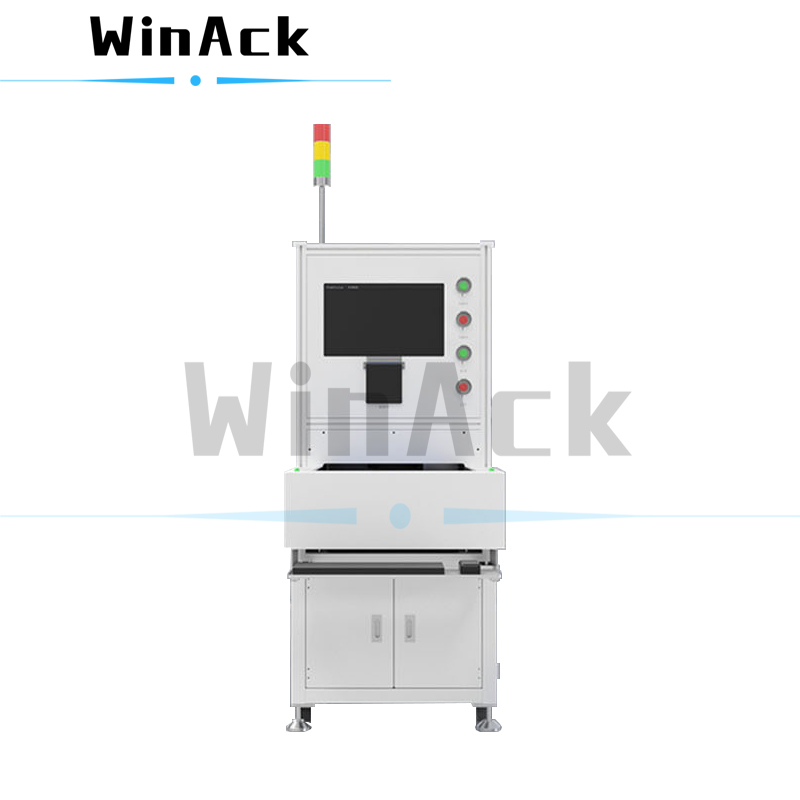

PPG Thickness Gauge is a professional pouch cell thickness measurement system with high measurement accuracy and good stability, which can significantly improve the measurement efficiency.
Model:
WA-PPG-2000DAMeasurable thickness range:
0~50mm (Customizable)Measurement accuracy:
≤±0.03mmPressure range of measuring panels:
10~200kgf (Customizable)Control accuracy of measuring panels pressure:
≤±3%Measurement efficiency:
PPM≥7Product Detail
PPG Thickness Gauge
Pouch Cell Thickness Measurement System
Product overview:
This PPG thickness gauge is a professional pouch cell thickness measurement system that can quickly measure the thickness of pouch cells under specific pressure, and this high precision thickness checker has been well received by many pouch cell manufacturers for its good performance.
Scope of application:
The PPG thickness gauges are especially suitable for thickness measurement of pouch cells.
In addition, it is also suitable for thickness measurement of other soft, flake-like products.
Features:
1) High accuracy and stability of measuring pressure control, good parallelism of the measuring panels, ensuring high measurement accuracy and stability.
2) The size of pouch cells that can be measured is large, up to L400*W250mm.
3) The pouch cell thickness measurement system is equipped with professional measurement software that is intelligent and meets the requirements of the pouch cell industry applications.
4) Fast and efficient measuring speed, measuring time ≤ 8s/pcs.
5) Simple measurement operation, automatic display of test results and saving of test data.
Technical specifications
|
Product name |
Pouch Cell Thickness Measurement System |
|
Product model |
WA-PPG-2000DA |
|
Measurable dimensions |
Maximum: L400*W250mm (Customizable) |
|
Measurable thickness range |
0~50mm (Customizable) |
|
Lifting height of upper measuring panel |
≥50mm |
|
Measurement sensor |
Mitutoyo or equivalent brands |
|
Measurement accuracy at a single point |
≤0.003mm Kindly reminder: Repeat measurement of the same standard sample 10 times at the same location |
|
Measurement accuracy |
≤±0.03mm Kindly reminder: Measurements of the same standard sample at 9 points on the measuring panel |
|
Pressure range of measuring panels |
10~200kgf (Customizable) |
|
Control accuracy of measuring panels pressure |
≤±3% |
|
Adjustment method of measuring pressure |
The standard weights counterweight is used for adjustment, and the minimum standard weights is 50 grams. |
|
Measurement efficiency |
PPM≥7 |
|
GR&R |
＜10% |
|
Measurement system stability |
≤0.01mm Kindly reminder: Using standard samples, repeat the test 3~5 times for 1 time/4 hours. |
|
Barcode scanner (Optional) |
Newland or Honeywell |
|
Measurement system software |
|
|
Actuators |
Servo Motor |
|
AC input voltage |
220VAC / 50Hz (Customizable) |
|
Power |
2000W |
|
Dimensions |
L1200*W1000*H1700mm |
Pouch cell thickness checker is a precision thickness checker that can be used as a battery volume expansion measurement equipment, and can also measure the thickness of other soft, thin flake-like products.
