High altitude simulation chamber simulates air transport under low pressure conditions and conducts altitude simulation tests and low pressure tests in standards such as UN38.3, IEC 62281 and UL 1642, etc.
Model:
WA-ST-125L-JASEffective Volume:
125L (Customizable)Note 1:
Inner Dimensions: W500*H500*D500mm (Customizable)Note 2:
Pressure Range: 5.0kPa~101.3kPaNote 3:
Test Time: At least six hours.Product Detail
High Altitude Simulation Chamber
Altitude Simulation Test and Low Pressure Test
Functional Description:
The high altitude simulation chamber is equipped with a vacuum system that can reduce the air pressure in the internal chamber to a set value, down to 5.0kPa. By this way, the altitude testing chamber simulates air transport under low-pressure conditions to test the safety or reliability of test samples.
Scope of Application:
The high altitude simulation chamber is suitable for testing the safety or reliability of cells, batteries or other samples in a specific simulated high-altitude and low-pressure environment of air transport.
Features:
1) The high altitude simulation chamber is equipped with a vacuum system that can simulate and maintain a low-pressure conditions with high stability and high precision for a long time.
2) The inner chamber of the altitude testing chamber is made of SUS304 with internal reinforcement, which will not deform even when vacuumed and has a long service life.
3) Silicone rubber sealing strips are used between the chamber door and the inner chamber to ensure sealing performance and vacuum of the altitude testing chamber.
4) The high altitude simulation chamber is equipped with 19mm thick tempered glass observation window, safe and reliable, easy to observe the internal samples.
5) The altitude testing chamber is equipped with a color touch screen controller that displays actual values and set values, and it is easy to operate and use.
6) The temperature of the inner chamber can be controlled by the ambient temperature of the laboratory. Alternatively, the high altitude simulation chamber can also be equipped with an optional temperature control system.
Technical Specifications of High Altitude Chambers
|
1. Product Name |
|
|
1.1 Product Name |
High Altitude Simulation Chamber |
|
1.2 Product Model |
WA-ST-125L-JAS |
|
1.3 Product Type |
Low Pressure Vacuum Test Chamber |
|
2. Application |
|
|
2.1 Application |
The high altitude simulation chamber is suitable for altitude simulation tests and low pressure simulation tests to test the reliability of samples in this simulated environment. |
|
3. Volume & Dimension & Weight |
|
|
3.1 Effective Volume |
125L (Customizable) |
|
3.2 Inner Dimensions |
W500*H500*D500mm (Customizable) |
|
3.3 Overall Dimensions |
W800*H1480*D750mm (Customizable) |
|
3.4 Weight |
About 250KG |
|
4. Performance |
|
|
4.1 Usage Environment |
Ambient temperature: ≤45℃; Relative humidity: ≤80%RH. |
|
4.2 Air Pressure Range |
5.0kPa~101.3kPa (The local standard atmospheric pressure shall prevail.) |
|
4.3 Control Accuracy |
≤±0.5kPa (≤5kPa) ≤±1.0kPa (5kPa~40kPa) ≤±2.0kPa (40kPa~80kPa) |
|
4.4 Pressure Reducing Speed |
12kPa/min~18kPa/min |
|
4.5 Vacuum Pressure Leakage |
0.8kPa/h |
|
4.6 Standard Compliance |
1) UN38.3 - 38.3.4.1 Test T.1: Altitude simulation 2) IEC 62281 - 6.6.1 Test T-1: Altitude 3) UL 1642 - 18C Low Pressure (Altitude Simulation) Test 4) GB 31241 – 7.1 Low Pressure 5) GB 31241 – 8.1 Low Pressure 6) Etc. |
|
4.7 AC Input Power |
Single-phase 220VAC±10%, 50Hz±0.5Hz, 1.5kW, Max. 7A (Customizable) |
|
4.8 Noise |
≤75dB (A Level) Note: The test point is 1m away from the noise source and ground. |
|
5. Structure & Material |
|
|
5.1 External Chamber |
Cold rolled steel plate with painting. |
|
5.2 Internal Chamber |
4.0mm thick SUS304 plate with internal reinforcement, which will not deform even when vacuumed. |
|
5.3 Internal Structure |
The internal chamber is divided into two layers by two mesh panels. |
|
5.4 Hollow Filling Material |
Rock wool with good thermal insulation effect. |
|
5.5 Door Seal Material |
High temperature resistant silicone strip |
|
5.6 Casters |
Install movable castors with brakes so it can be moved when needed and can be fixed in place. |
|
5.7 Chamber Door |
Manual single open door. |
|
5.8 Observation Window |
There is a 19mm thick tempered glass observation window on the door, with specifications of W250*H300mm. |
|
6. Controller |
|
|
6.1 Controller |
Touch screen controller (E600) |
|
6.2 Touch Screen |
7-inch touch screen (English/Chinese) |
|
6.3 Control Mode |
Set-value. Kindly reminder: Parameters such as vacuum upper limit, vacuum lower limit, low pressure holding time, stop low pressure and restore to normal pressure, stop alarm, etc. can be freely set. |
|
7. Vacuum System |
|
|
7.1 Vacuum Pump |
DAERTUO VP750 |
|
7.2 Pump Power |
About 0.75kW |
|
7.3 Vacuum Pressure Sensor |
Diffused Silicon Pressure Sensor |
|
7.4 Vacuum Check Valve |
RIAN DN15 |
|
7.5 Vacuum AC contactor |
Schneider LC1/N0910 |
|
8. Protection Function |
|
|
8.1 Protection Function |
When the air pressure exceeds the protection value, the vacuum operation will stop automatically and the air pressure will begin to return to normal. |

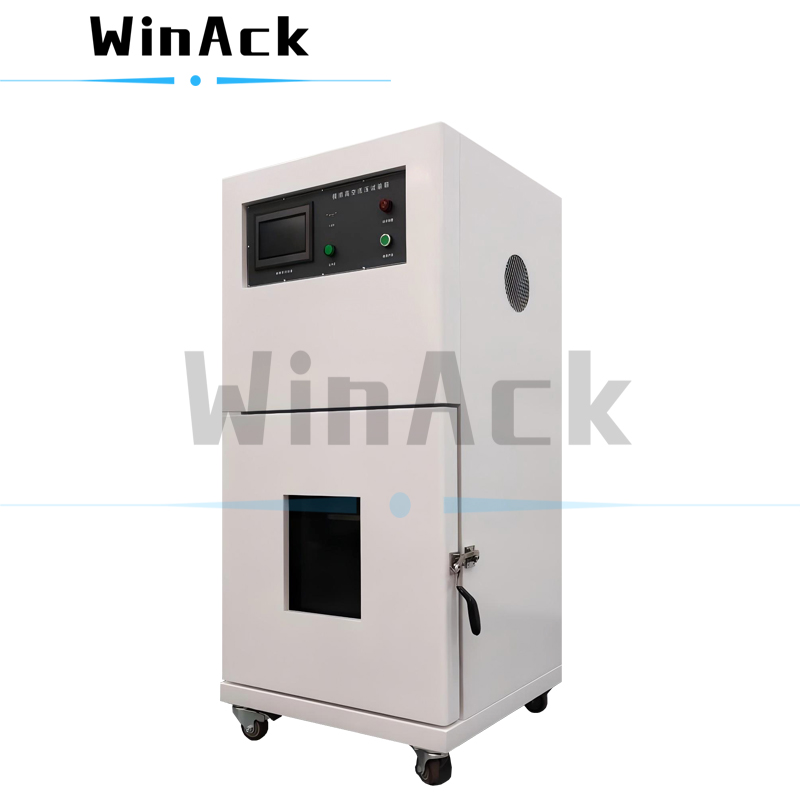

Figure 1. High Altitude Simulation Chamber (125L)
