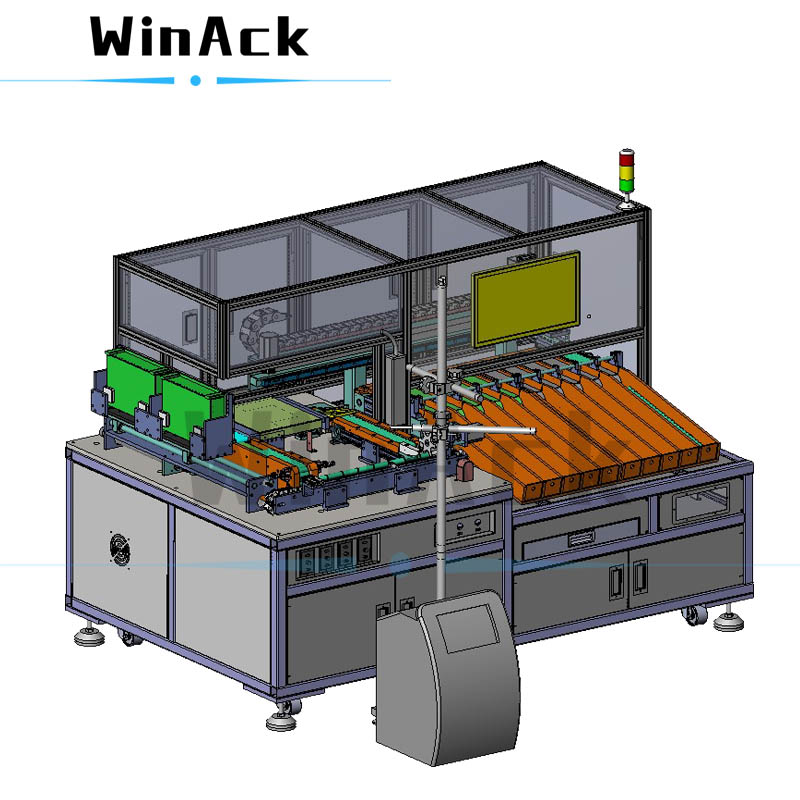

The battery sorting robot is equipped with a battery cell barcode printer to match the measured OCV/IR value with the cells. The cells are traceable, which is conducive to brand management.
Model:
WA-AS-T10PBattery type:
Cylindrical cellBattery feeding method:
Tray loading typeTesting and grading items:
OCV/IRWarranty:
One year warranty with lifetime supportProduct Detail
Product overview:
Before assembling the battery module, it is necessary to perform capacity testing and grading of battery cells, and then perform OCV/IR testing and grading on battery cells of the same capacity grade, so as to increase the battery cells capacity and OCV/ IR consistency. By doing this, the manufactured battery pack has better performance in terms of charge and discharge performance and cycle life.
The battery sorting robot can perform high-speed OCV/IR testing and grading of lithium-ion battery cells to realize automatic sorting of battery cells. Therefore, the battery sorting robot is one of the necessary equipment of the battery pack assembly production line.
In addition, the battery sorting robot is equipped with a barcode printer, which can give the battery cell a unique ID and match the test data.
Scope of application:
The automatic battery sorting robot is suitable for the incoming inspection and grading of cylindrical cells.
All kinds of cylindrical cells can be customized, the common types are 18650, 21700, 26650, 26700, 32650 and 32700, etc.
Features:
1) Battery cell barcode printer
The automatic battery sorting robot is equipped with a barcode printer, which can print barcodes or QR codes on battery cells to match test data.
2) High-precision battery OCV/IR tester
The battery OCV/IR tester of a well-known brand is adopted, which has high test accuracy and good reliability.
3) Battery tray loading
The battery cells are loaded through the battery tray, and the loading operation is faster.
4) Simple operation
The automatic battery sorting robot is equipped with Industrial PC & Monitor, and pre-installed professional battery sorting software, the operation is simple, and the stored test data is easy to retrieve.
5) High testing and sorting efficiency
The automatic battery sorting robot can be able to test and sort about 4500~5000 battery cells per hour.
Note: The prototype battery type is 18650 cells.
6) No short-circuit during transportation
The transportation route of the battery cells in the machine adopts insulating material to prevent short circuit.
7) Four-wire measurement
Perform four-wire measurement to ensure high test accuracy.
Technical specifications
|
Product name |
Cylindrical Battery Cell Sorting Machine |
|
Product model |
WA-AS-T10P |
|
Number of sorting channels |
10 Channels (9 OK Channels + 1NG Channel) |
|
Applicable type of battery cells |
Prototype battery: 18650 cells |
|
21700 or 26650 or 26700 or 32650 or 32700, etc. can be customized |
|
|
Sorting efficiency |
About 4500~5000 Cells/Hour |
|
Battery cells loading method |
Manually load the battery trays into the cells loading area |
|
Number of battery trays on the machine: 2PCS |
|
|
Battery tester |
Hioki 3561A or HP3561 |
|
Battery cell testing and grading items |
OCV/IR |
|
Measurement of Internal resistance (IR) |
Test range: 0~60mΩ Test accuracy: ±0.5%rdg Test resolution: 0.1mΩ |
|
Measurement of Open circuit voltage (OCV) |
Test range: 0~10V Test accuracy: ±0.015%rdg Test resolution: 0.1mV |
|
Operation and control module |
Industrial PC & Monitor & PLC |
|
Power supply |
Single-phase AC220V±10% / 50Hz (Customizable) |
|
Power: ≤2000W |
|
|
Compressed air pressure |
0.5~0.8MPa |
|
Size(L*W*H) |
2000*1250*1400mm |
|
Weight |
＜400kg |
Equipment configuration
|
NO. |
Spare parts |
Brand |
|
1 |
Air cylinder |
AIRTAC or CHELIC or SMC or CKD or HITOP |
|
2 |
Solenoid value |
AIRTAC or CHELIC or SMC or CKD or HITOP |
|
3 |
Linear guide rail |
HIWIN |
|
4 |
PLC |
OMRON |
|
5 |
Electric relay |
OMRON or Shanghai Electric |
|
6 |
Sensor |
OMRON or SUNX or AkuSense |
|
7 |
Push button |
Guangke |
|
8 |
Stepper motor |
Leadshine or Inovance |
|
9 |
Servo motor |
Fuji Electric or Panasonic |
|
10 |
Battery tester |
Hioki 3561A or HP3561 |
|
11 |
Industrial computer |
YENWARE |
|
12 |
Monitor |
DELL |
|
13 |
Barcode printer |
Optional |
*Note: Subject to the actual use, if there is any change, no further notice will be given.
