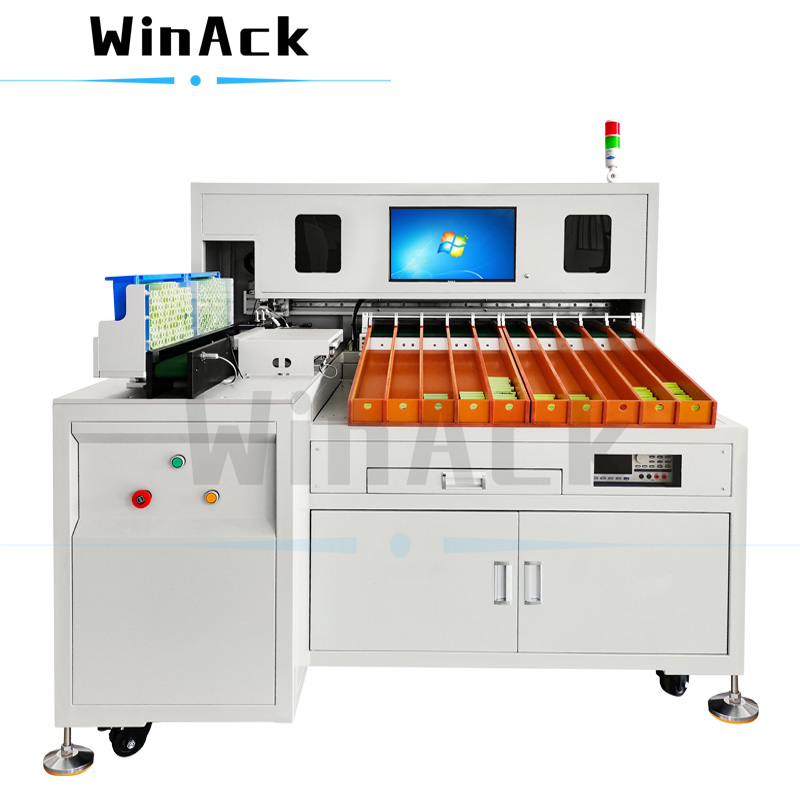

The lithium-ion battery sorting machine is equipped with a battery cell barcode scanner to match the measured OCV/IR value with the cylindrical cells. The test data is traceable and valuable.
Model:
WA-AS-T10SBattery type:
Cylindrical cellBattery feeding method:
Tray loading typeTesting and grading items:
OCV/IRWarranty:
One year warranty with lifetime supportProduct Detail
Product overview:
The lithium-ion battery sorting machine is equipped with a battery cell barcode scanner to match the measured OCV/IR value with the battery cells. The test data becomes traceable and valuable. In addition, the test data can be uploaded to the internal network and MES system, enabling intelligent and digital production.
The lithium-ion battery sorting machine is mainly composed of a battery cell tray loading module, a battery cell barcode scanning module, a battery OCV/IR measurement module, an automatic sorting module and a receiving channels module.
Scope of application:
The lithium-ion battery sorting machine is suitable for incoming inspection and grading of cylindrical cells.
All kinds of cylindrical cells can be customized, the common types are 18650, 21700, 26650, 26700, 32650 and 32700, etc.
Features:
1) Battery cell barcode scanner
The lithium-ion battery sorting machine is equipped with a battery cell barcode scanner to match the measured OCV/IR value with the battery cells. Test data can be uploaded to the internal network or MES system for traceability.
2) High-precision battery OCV/IR tester
The battery OCV/IR tester of a well-known brand is adopted, which has high test accuracy and good reliability.
3) Battery tray loading
The battery cells are loaded through the battery tray, and the loading operation is faster.
4) Simple operation
The battery sorting machine is equipped with Industrial PC & Monitor, and pre-installed professional battery sorting software, the operation is simple, and the stored test data is easy to retrieve.
5) High testing and sorting efficiency
The battery sorting machine can be able to test and sort about 6000 battery cells per hour.
Note: The prototype battery type is 18650 cells.
6) No short-circuit during transportation
The transportation route of the battery cells in the machine adopts insulating material to prevent short circuit.
7) Four-wire measurement
Perform four-wire measurement to ensure high test accuracy.
Technical specifications
|
Product name |
Cylindrical Battery Cell Sorting Machine |
|
Product model |
WA-AS-T10S |
|
Number of sorting channels |
10 Channels (9 OK Channels + 1NG Channel) |
|
Applicable type of battery cells |
Prototype battery: 18650 cells |
|
21700 or 26650 or 26700 or 32650 or 32700, etc. can be customized |
|
|
Sorting efficiency |
About 6000 Cells/Hour |
|
Battery cells loading method |
Manually load the battery trays into the cells loading area |
|
Number of battery trays on the machine: 2PCS |
|
|
Battery tester |
Hioki 3561 or HP3561 |
|
Battery cell testing and grading items |
OCV/IR |
|
Measurement of Internal resistance (IR) |
Test range: 0~60mΩ Test accuracy: ±0.5%rdg Test resolution: 0.1mΩ |
|
Measurement of Open circuit voltage (OCV) |
Test range: 0~10V Test accuracy: ±0.015%rdg Test resolution: 0.1mV |
|
Operation and control module |
Industrial PC & Monitor & PLC |
|
Optional function |
1) Battery cell barcode printer 2) Battery cell barcode scanner |
|
Power supply |
Single-phase AC220V±10% / 50Hz (Customizable) |
|
Power: ≤2000W |
|
|
Compressed air pressure |
0.5~0.8MPa |
|
Size(L*W*H) |
1450*1100*1650mm |
|
Weight |
＜300kg |
Equipment configuration
|
NO. |
Spare parts |
Brand |
|
1 |
Air cylinder |
AIRTAC or CHELIC or SMC or CKD or HITOP |
|
2 |
Solenoid value |
AIRTAC or CHELIC or SMC or CKD or HITOP |
|
3 |
Linear guide rail |
HIWIN |
|
4 |
PLC |
OMRON |
|
5 |
Electric relay |
OMRON or Shanghai Electric |
|
6 |
Sensor |
OMRON or SUNX or AkuSense |
|
7 |
Push button |
Guangke |
|
8 |
Stepper motor |
Leadshine or Inovance |
|
9 |
Servo motor |
Fuji Electric or Panasonic |
|
10 |
Battery tester |
Hioki 3561 or HP3561 |
*Note: Subject to the actual use, if there is any change, no further notice will be given.
