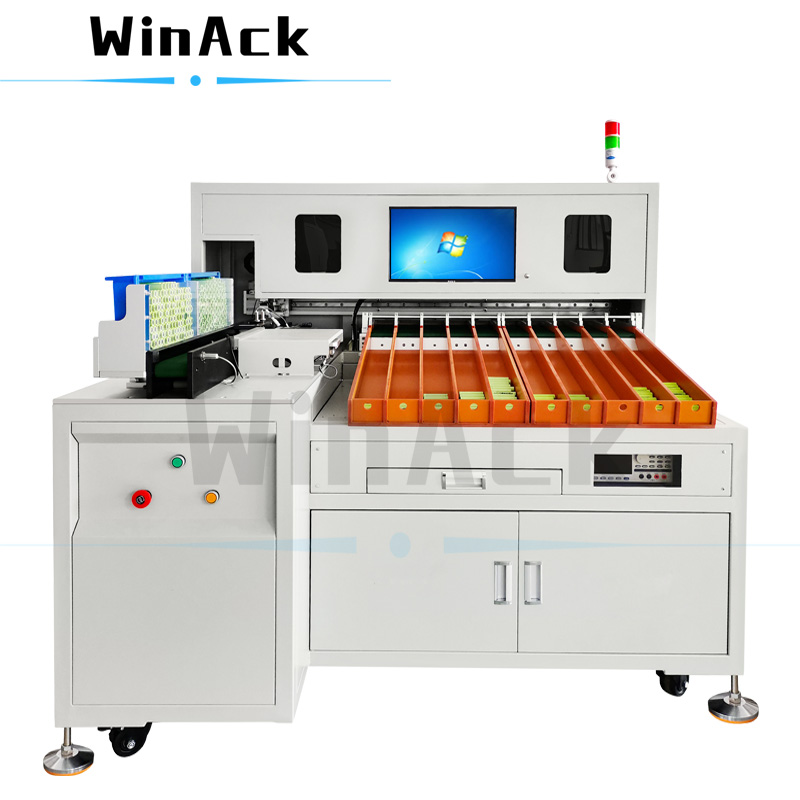

The battery sorting machine is a professional semi-automatic li-ion cylindrical battery cell testing and grading system with high test accuracy, high sorting efficiency and simple operation.
Model:
WA-AS-T10BBattery type:
Cylindrical cellBattery feeding method:
Tray loading typeTesting and grading items:
OCV/IRWarranty:
One year warranty with lifetime supportProduct Detail
Product overview:
In order to improve the consistency of the battery cells, so as to produce battery packs with the best cycle life, the lithium-ion battery OCV/IR testing and sorting machines are required for battery cell manufacturers and battery pack manufacturers.
The battery sorting machine is a professional automatic battery grading machine that adopts four-wire connection and AC method to measure the OCV/IR of battery cells at high speed, and output the battery cells in grades.
The automatic battery sorting machine is equipped with Industrial PC and high-precision battery OCV/IR tester. The OCV/IR parameters can be easily set on the professional battery sorting software, and then the measured values are compared with the set values, and battery cells of different grades are automatically output to different channels, so as to realize automatic battery testing and sorting.
Scope of application:
The battery sorting machine is suitable for OCV/IR testing and grading of lithium-ion cylindrical battery cells.
The applicable prototype battery type is 18650 cells, and other types of cylindrical cells can be customized, such as 21700 cells, 26650 cells, 26700 cells, 32650 cells, 32700 cells, etc.
Features:
1) Battery tray loading
The battery cells are loaded through the battery tray, and the loading operation is faster.
2) Simple operation
The battery sorting machine is equipped with Industrial PC & Monitor, and pre-installed professional battery sorting software, the operation is simple, and the stored test data is easy to retrieve.
3) High testing and sorting efficiency
The battery sorting machine can be able to test and sort about 5000 battery cells per hour.
Note: The prototype battery type is 18650 cells.
4) No short-circuit during transportation
The transportation route of the battery cells in the machine adopts insulating material to prevent short circuit.
5) Digital Intelligent Manufacturing
The machine is able to connect to the in-house network, and the test data can be uploaded to the MES system.
6) Four-wire measurement
Perform four-wire measurement to ensure high test accuracy.
7) Every cell can be traced
Battery cell Barcode printer and battery cell Barcode scanner is optional to match the test data with the battery cells.
Technical specifications
|
Product name |
Cylindrical Battery Cell Sorting Machine |
|
Product model |
WA-AS-T10B |
|
Number of sorting channels |
10 Channels (9 OK Channels + 1NG Channel) |
|
Applicable type of battery cells |
Prototype battery: 21700 cells |
|
18650 or 26650 or 26700 or 32650 or 32700, etc. can be customized |
|
|
Sorting efficiency |
About 5000 Cells/Hour |
|
Battery cells loading method |
Manually load the battery trays into the cells loading area |
|
Number of battery trays on the machine: 2PCS |
|
|
Battery tester |
Hioki 3561A or HP3561 |
|
Battery cell testing and grading items |
OCV/IR |
|
Measurement of Internal resistance (IR) |
Test range: 0~60mΩ Test accuracy: ±0.5%rdg Test resolution: 0.1mΩ |
|
Measurement of Open circuit voltage (OCV) |
Test range: 0~10V Test accuracy: ±0.015%rdg Test resolution: 0.1mV |
|
Operation and control module |
Industrial PC & Monitor & PLC |
|
Optional function |
1) Battery cell Barcode printer 2) Battery cell Barcode scanner |
|
Power supply |
Single-phase AC220V±10% / 50Hz (Customizable) |
|
Power: ≤2000W |
|
|
Compressed air pressure |
0.5~0.8MPa |
|
Size(L*W*H) |
1460*930*1680mm |
|
Weight |
＜300kg |
Equipment configuration
|
NO. |
Spare parts |
Brand |
|
1 |
Air cylinder |
AIRTAC or CHELIC or SMC or CKD or HITOP |
|
2 |
Solenoid value |
AIRTAC or CHELIC or SMC or CKD or HITOP |
|
3 |
Linear guide rail |
HIWIN |
|
4 |
PLC |
OMRON |
|
5 |
Electric relay |
OMRON or Shanghai Electric |
|
6 |
Sensor |
OMRON or SUNX or AkuSense |
|
7 |
Push button |
Guangke |
|
8 |
Stepper motor |
Leadshine or Inovance |
|
9 |
Servo motor |
Fuji Electric or Panasonic |
|
10 |
Battery tester |
Hioki 3561A or HP3561 |
*Note: Subject to the actual use, if there is any change, no further notice will be given.
The lithium-ion battery cell sorting machine is equipped with a high-precision battery OCV/IR tester, which is suitable for the automatic sorting of 18650, 21700, 26650 and 32650 cells.
The lithium-ion battery sorting machine is equipped with a battery cell barcode scanner to match the measured OCV/IR value with the cylindrical cells. The test data is traceable and valuable.
The battery sorting robot is equipped with a battery cell barcode printer to match the measured OCV/IR value with the cells. The cells are traceable, which is conducive to brand management.
The battery cell testing and sorting machine is equipped with replaceable receiving containers, and the manipulator can automatically send the graded cells to the corresponding containers.
